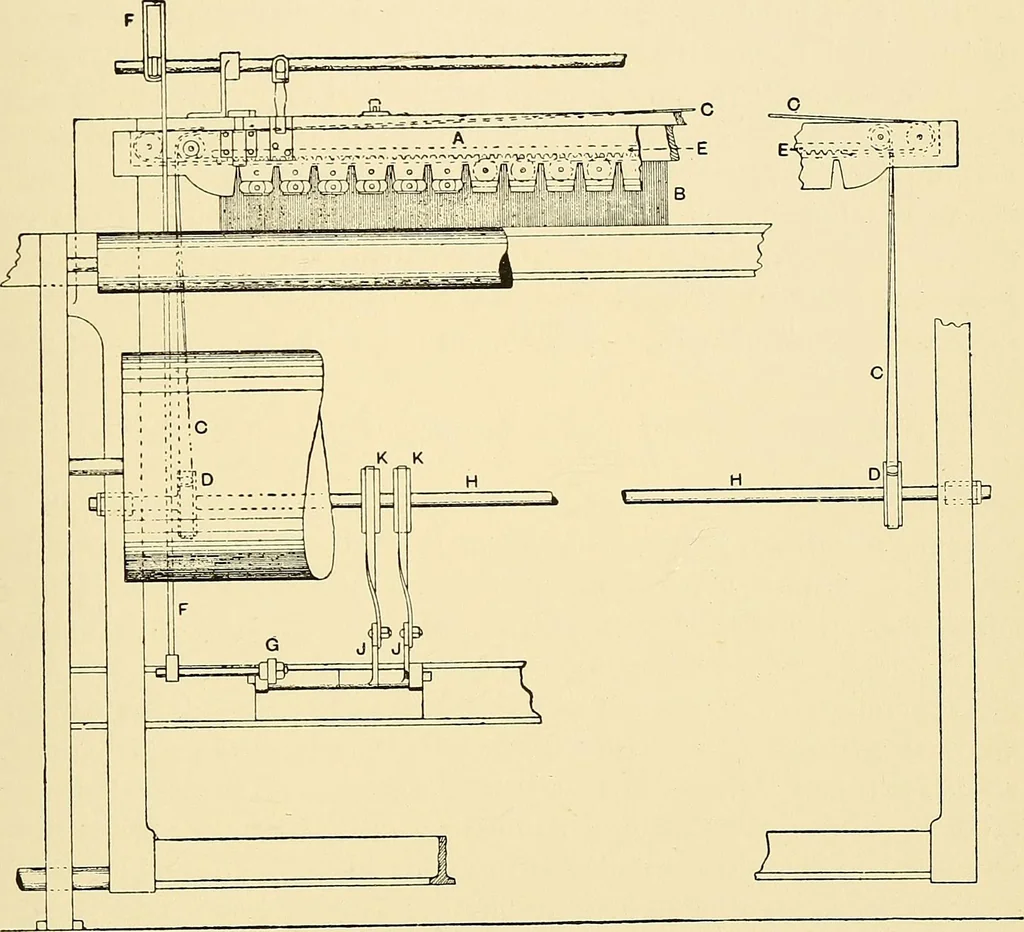

r, the bowlthrusts a projection from the peg wheel against a lever, the end ofwhich is attached to a vertical lever slotted on to the holder of the THE WEFT MECHANISM 139 swivel frame, allowing the swivel frame to fall down. We havepointed to the sliding motion of the peg wheel, and, after the… … Fig. 337.—Swivel on Power Loom A, Swivel frame, b, Reed, c c, Straps fixed on opposite sides of the pulleys D D, on the rocking shaft H, andto opposite ends of the rack E, giving lateral motion thereto. F F is a slotted rod driven by a cam acting on thearm G, and lifting the swivel frame A out of…
