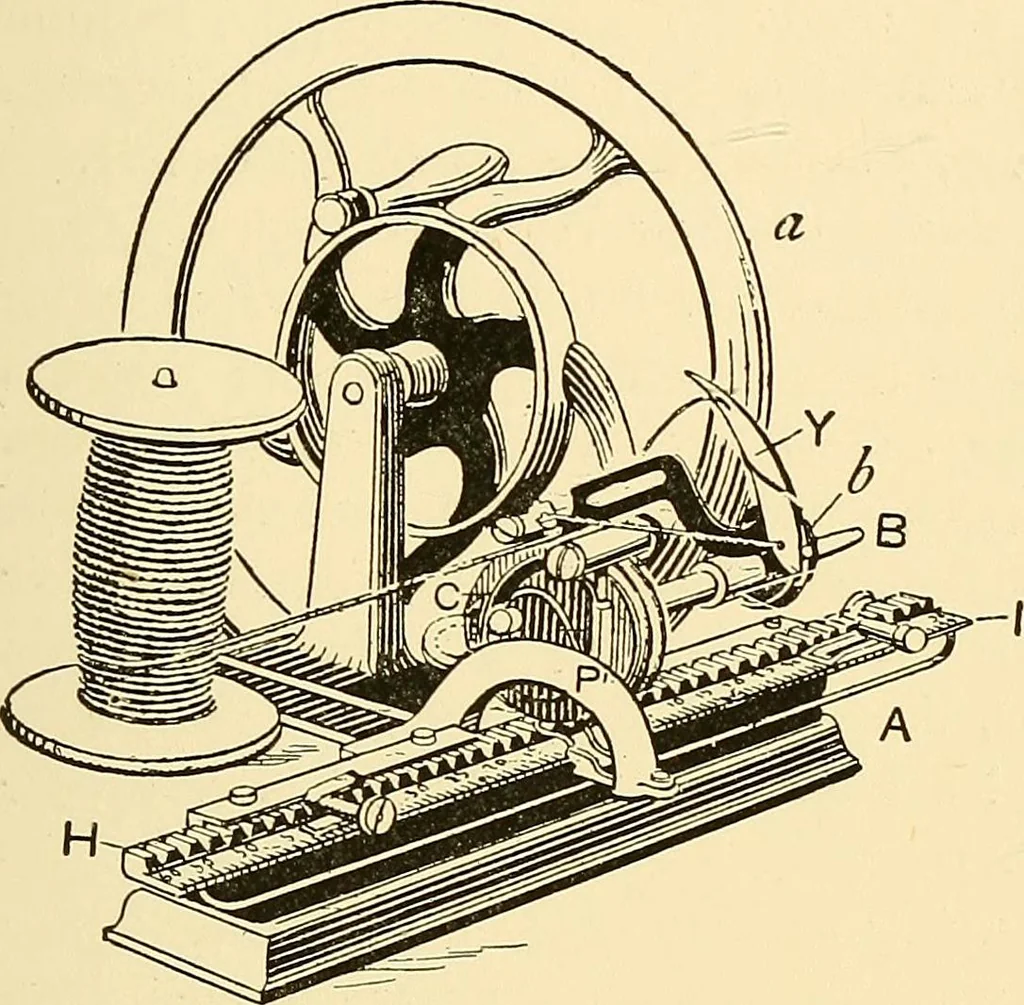

h some slight variations in detail; but its main POWER FRAMES 53 features are the single needle^ the looper, the comb and rack, and thecompound wheel, the functions of the last being very ingeniouslycombined. The details of the machine (figs. 519, 520) are as follows: a, bed plate; b, horizontal… … Fig. 5ig.—Hinckleys Single-needle Knitter reciprocating motion tolooper carrier j andlooper M, by means ofstud F; G, tumbleroperating reversing finson wheel c; h, rack;I, comb; k, arm carry-ing looper; p, plateattached by bent armp (fig. 519) to base ofmachine, and providedwith spring plate o…
