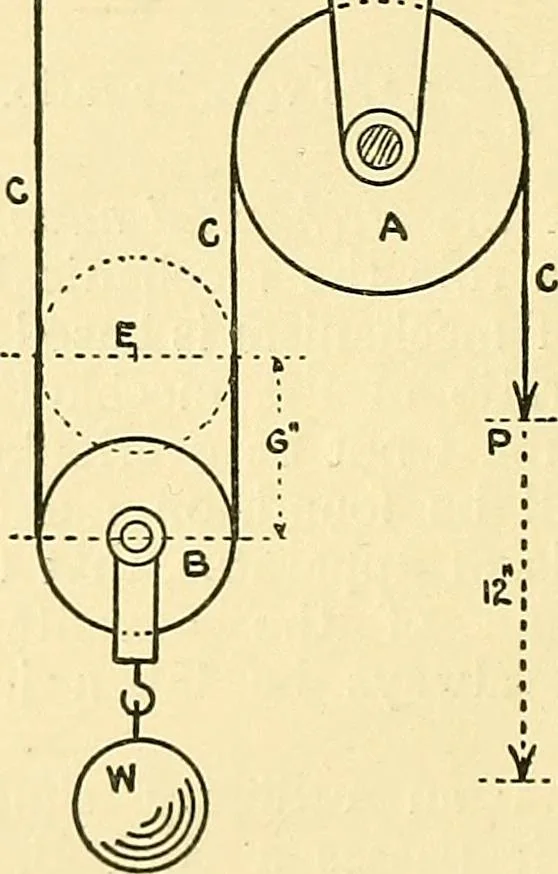

d are extensively used for this purpose. Forinstance, in Fig. 156 a cord C is fastened to the frameworkand is passed under a movable pulley B and over a fixedpulley A. A pressure at P will raise the weight W which isattached to the movable pulley B. The pressure P will be equal along the whole cord… … .-*-.. n<^i56 If we assume that the pressure P pulls the cord downwardsa distance of 12 in., then the pulley B and weight would beraised 6 in., because it would require 6 in. of each supportingcord to obtain the 12 in. of Ps movement. The space ratio orvelocity ratio would therefore be two. Fig.…
