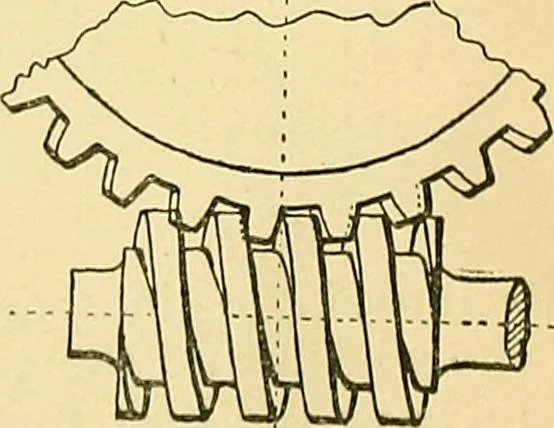

e worm-wheel enlarged. The screw-thread is an inclined surface, so thatas the worm revolves the helical threadwill move the teeth of the worm-wheelaside, and other teeth will move intoposition, to be pushed aside in theirturn. One revolution of the worm willmove one tooths distance of the… … Fi<^.2^^ TEXTILE MECHANICS 13 Fig When the worm A has two threads, cut on its surface as in25, then one revolution of A will revolve the wheel to theextent of two teeth, so that A will require to make ten revolu-tions to produce one revolution of B. It will be seen that forpractical purposes a…
