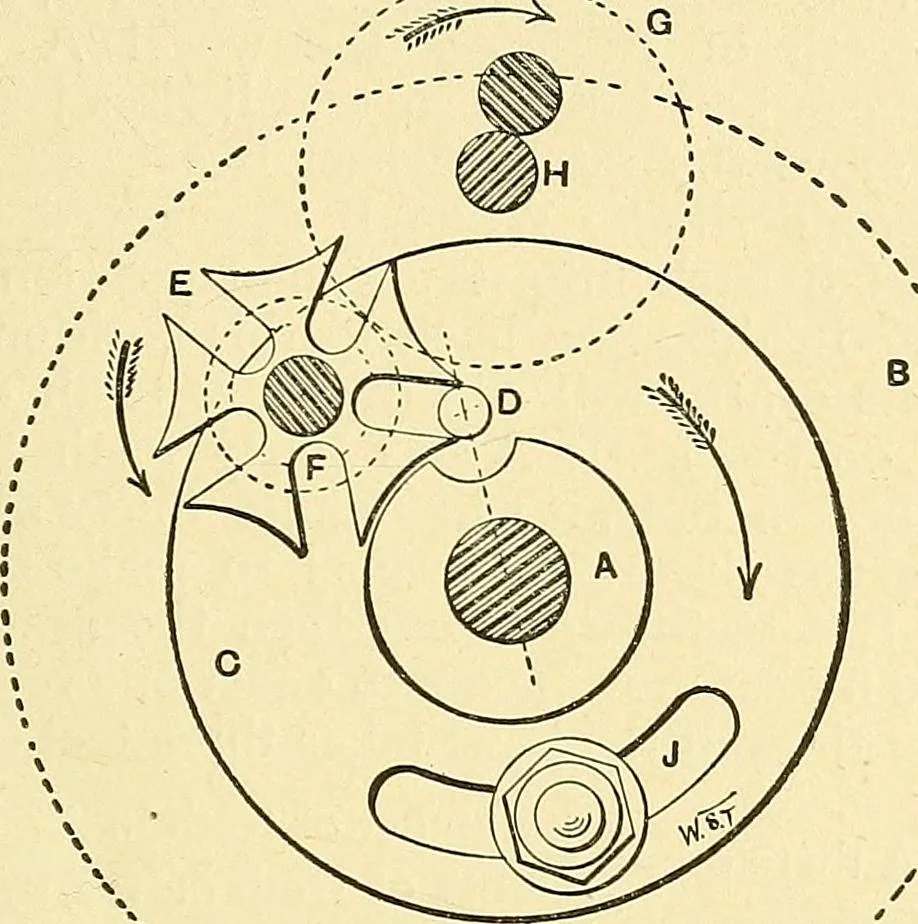

and the star-wheel E as a wheel of fiveteeth. The arrangement may be made for more than one pinD and varying slots to suit the characters of the intermittentmotion required. TEXTILE MECHANICS 15 Fig. 27A shows its application to a combing machine. Theobject is to revolve the roller H intermittently… … F^,2rf shaft as F is fixed the star-wheel E, and in this wheel is geareda pin D attached to a disc C. The disc C revolves continuously,but the star-wheel E will only move round a fifth of a revolutionat that part of the revolution of C when the pin D gears withthe slots in E. The rest of the…
