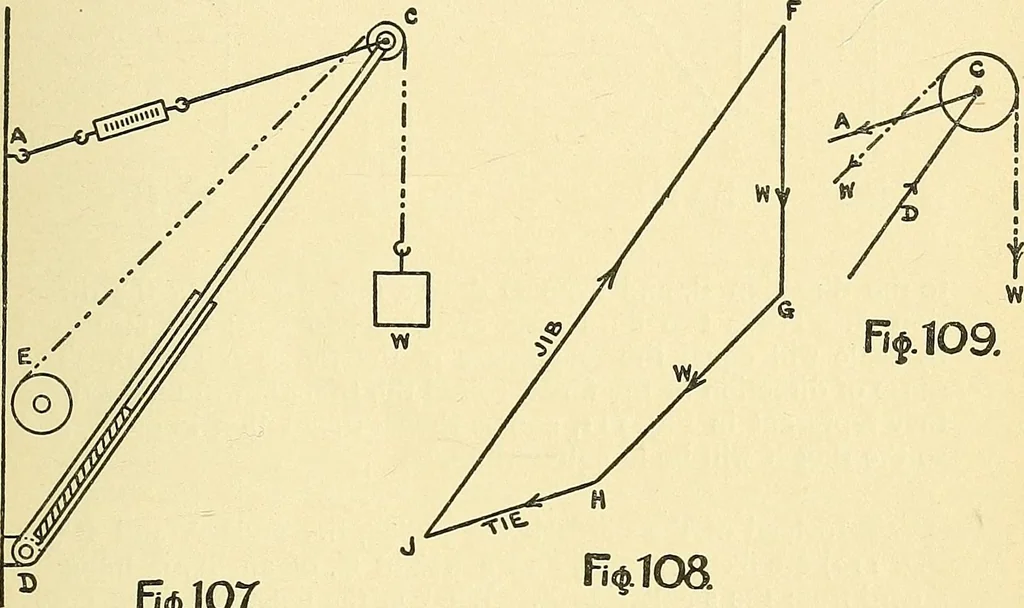

forces, each force equalto the weight. One of these is vertical due to the weight, andthe other along CE due to the drum winding up or sustainingthe weight; their directions will be as shown in Pig. io8. Theforces acting along the tie and jib are to be found. Draw FG vertical and equal by scale to… … Rf.109. FF^JOr the tie AC; its length is not known. Draw from F a line FJparallel to the jib CD; length also not known. Wherever FJand HJ meet at J the lengths HJ and JF by scale will equalthe forces acting along the tie and jib respectively. By placingarrows in the same order as on the forces due…
