Theoretical and experimental investigation of induction machines (1900)
Schulz, William Frederick, Marble, Harry Curtiss · leaf 40

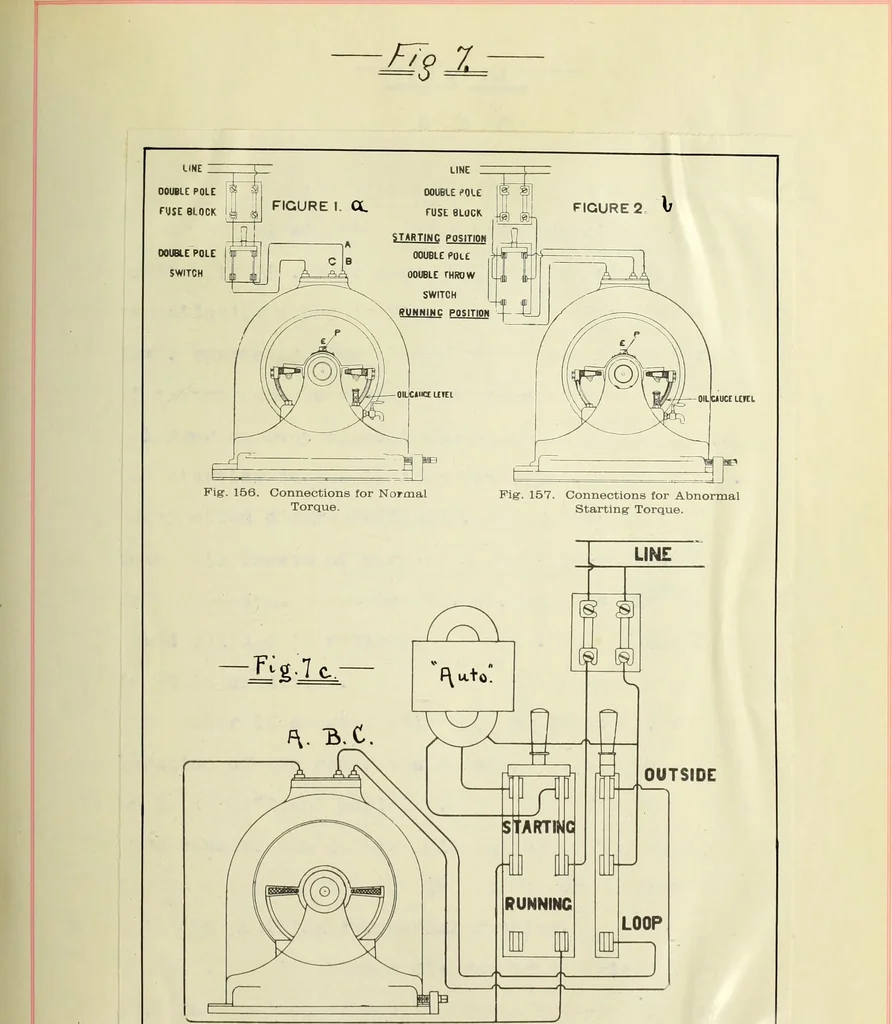

ram of the winding on 1iiestator, and the loop connection,for a four-pole, one-hundred &four volt machine. The loop terminal is marked B and the windings cut out hy this connection are marked la, 2a,3a and 4a. The two pairs of poles are connected in paral- lel. t #nlw m Hwntm VIM --^tbrhr bJ^f^… … Pig. 168. Connections when a Small Reducing- Transformer for Holding Down the Starting Current.
Electric machinery, Induction · Theses
Internet Archive · University of Illinois Urbana-Champaign · Public Domain Mark 1.0. Free to use for anything.
