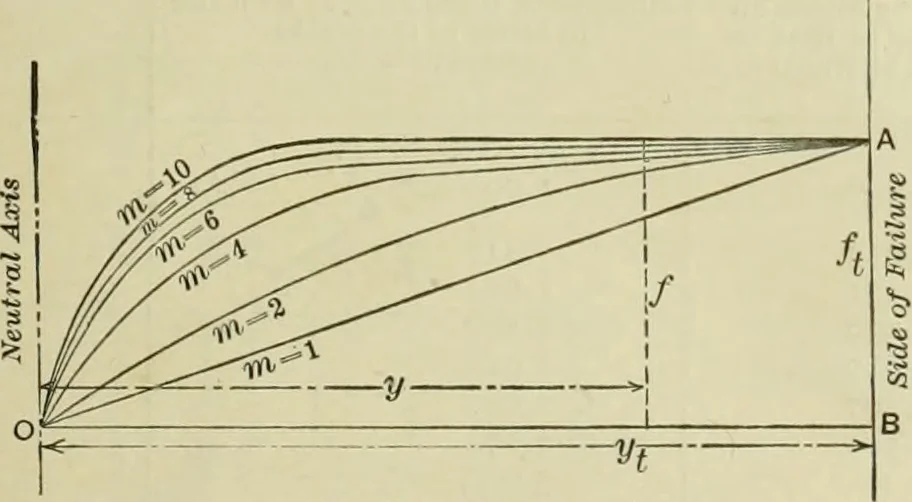

Fig. 178. … Fig. 179. 126 MODERN FRAMED STRUCTURES. tension, and in timber, where the reverse holds true, the neutral axis shifts at rupture veryfar towards the stronger side, as shown in Figs. 177 and 178, and the portion of the straindiagram utilized on this side becomes practically a straight line. In this…
