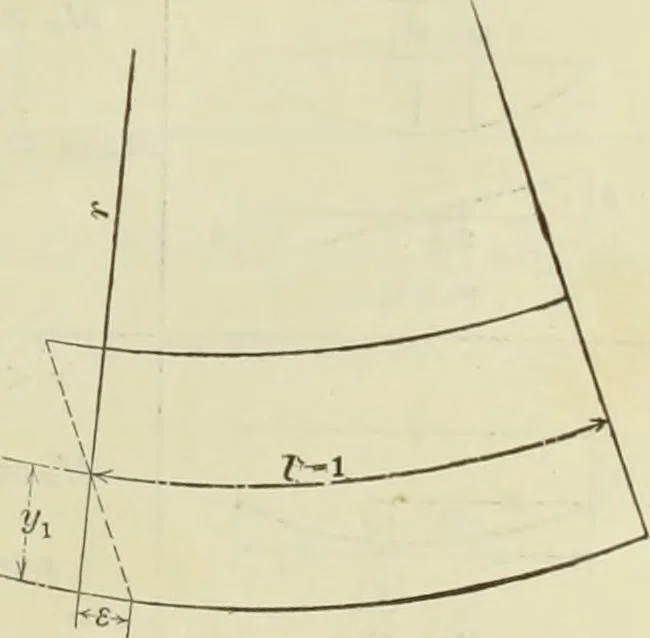

ro the bending moment is either a maximum or a minimum. A knowledge of this relationcan often be used with advantage in the analysis of trusses. 129. The Deflection of Beams.—Let Fig. 187 represent a portion of a bent beam oneunit in length. The sections which were parallel and normal before… … Fig. 187. I dxd^y But from the calculus we have - = ——-. In the case of the deflection of beams the r {(11) MODERN FRAMED STRUCTURES.MOMENTS, STRESSES, AND DEFLECTION OF BEAMS. The Beam and its Load withthe Moment and ShearDiagrams.
