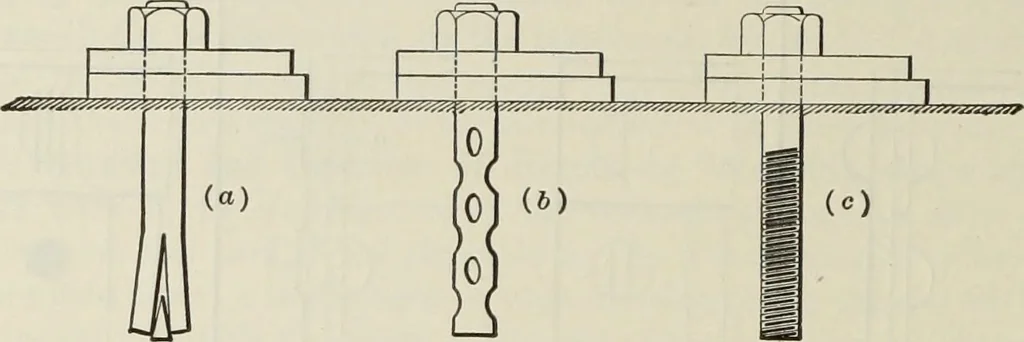

filled with sul-phur, lead, or cement, which sets and holds the bolt. 268 MODERN FRAMED STRUCTURES. Where the anchor bolts are not relied on to resist any direct tension, they are put from sixto nine inches in the masonry. If the bolts are relied on to take a direct tensile stress—as, for instance,… … Fig. 292. the bolt. These bolts are usually provided with a head on their lower end, which bears on aniron plate. If made in this way they are built into the masonry when the latter is laid. Boltswith screw-ends, as shown in (^r), Fig. 292, have been set in masonry with cement, and whentested have…
