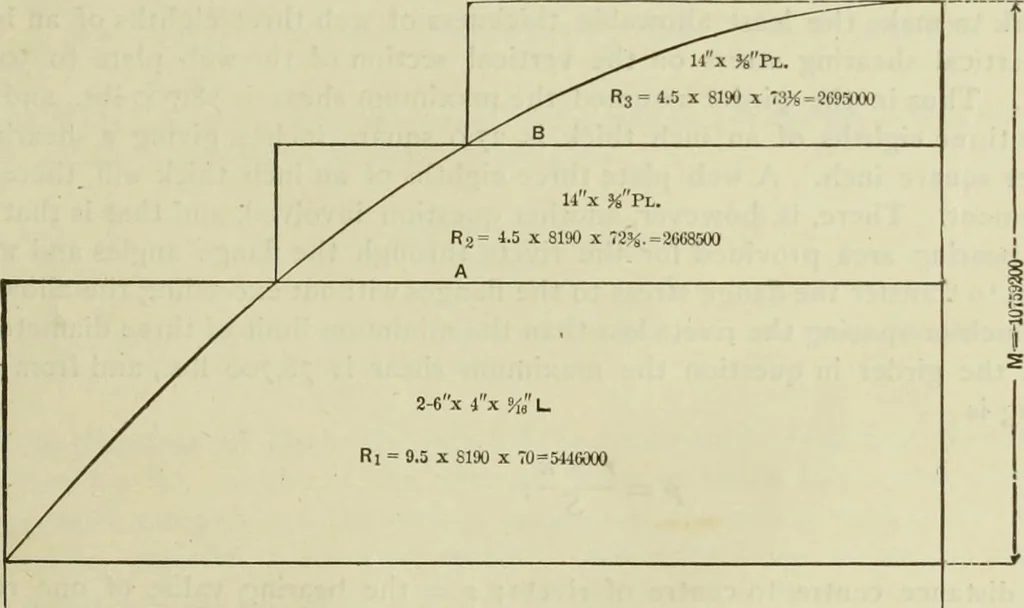

meter, and the net area is found by deductingone hole one inch in diameter from each angle and two holes from each plate, it being assumedthat the rivets are staggered in the angles. 284. The Lengths of Flange Plates are usually determined as follows:The curve of maximum bending moments is assumed… … Fig. 345. The corresponding moments of resistance of the plates and angles , , and .^3) arethen laid off on the figure to the same scale, and the lengths of the plates determined by theintersection of the limiting lines A and B with the curve. Or an easy way of determining 125,800 7,500 = 16.8 [The…
