The theory and practice of modern framed structures : designed for the use of schools, and for engineers in professional practice (1897)
Johnson, J. B. (John Butler), 1850-1902, Bryan, C. W. (Charles Walter), 1863-1927, Turneaure, Frederick Eugene, 1886- · New York : J. Wiley & Sons · leaf 42

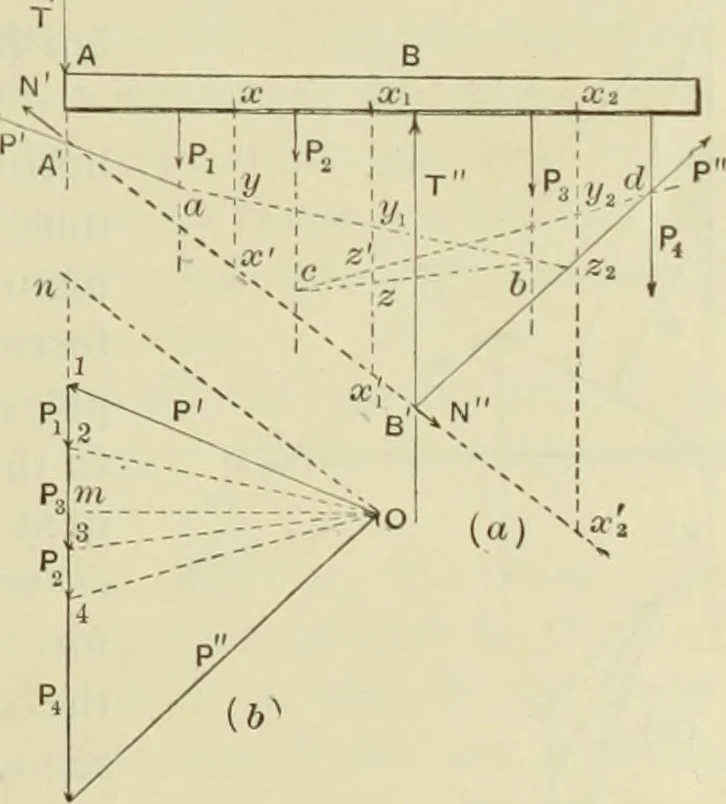

xy X Om and is negative. The sum of the momentsof T, P,, and P^ about a point x, is not given by a singleordinate rnultiplied by Om, since the force P^ does notcome next in the construction. The sum of the momentsof T and P^ about x, = x/y^ x Om, and the moment ofP, = zz X Om ; hence, these moments… … Fig. 41. 26 Modern framed structures. Application. 45. First. To the Structure as a Whole to determine a portion of the externalforces. Example i. Three equal cylinders, each weighing 1000 lbs. (Fig. 42), B and C justtouching at k; surfaces smooth so that pressures are normal. Required thereactions…
