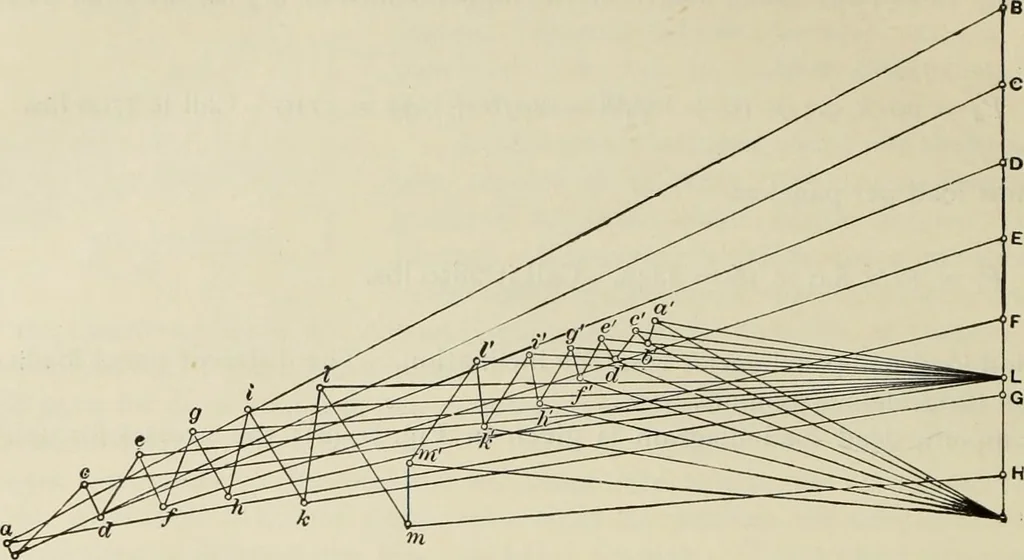

ater with full snow-load. The diagrams for wind load are given in Figs. 70 {c) and {d). Fig. {c) is for wind fromleft, left end fixed. In drawing the diagram for wind from the right, we may, for convenience,consider the truss turned end for end. The left end will now be on rollers and the right… … Fig. lob.
