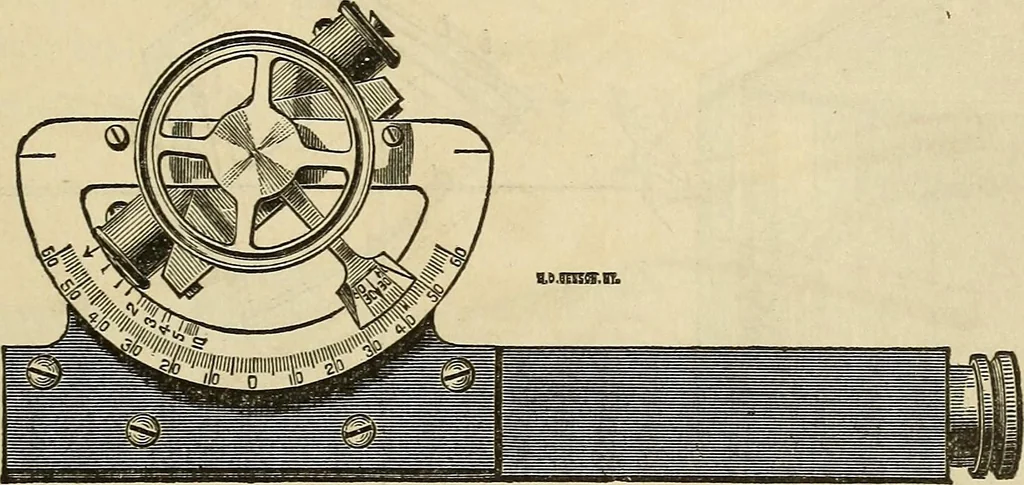

mapped. ADJUSTMENT, USE, AND CARE OF INSTRUMENTS. I4T THE CLINOMETER. 141. The Clinometer is a hand-instrument for determin-ing the slope of ground or the angle it makes with the horizon.It consists essentially of a level bubble, a graduated arc, and aline of sight, so joined that when the line of… … Fig. 33. clinometer, being really a hand-level when the vernier is set toread zero. The position of the bubble is visible when lookingthrough the telescope, the same as with the Locke hand-level,shown in Fig. 16, p. 82. The body of the tube is made square,so that it may be used to find vertical…
