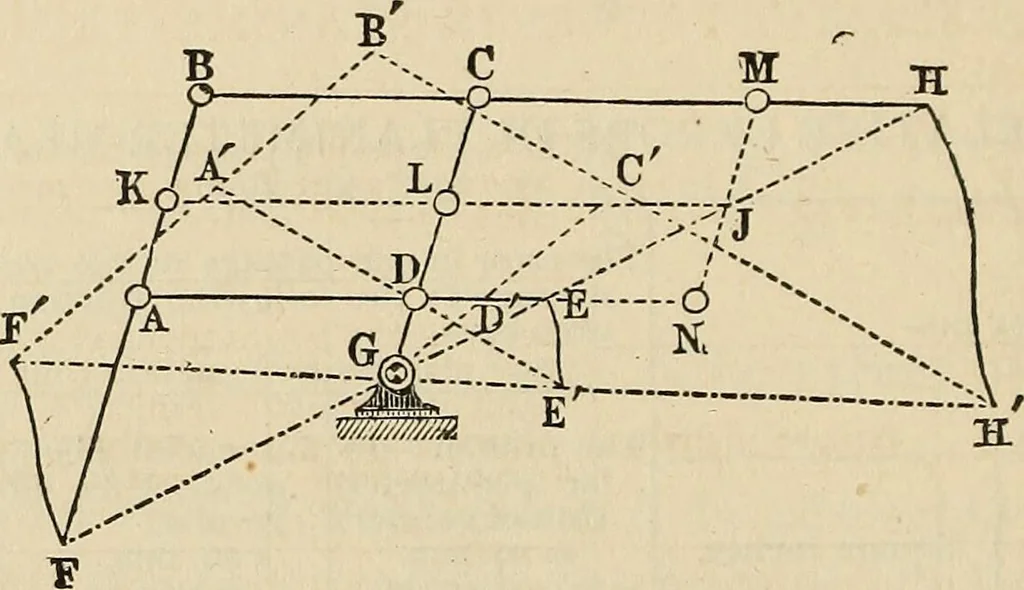

atthe corners A, B, C, and D, and indefinitely extended, be cut bya right line in four points, as E, F, G, and H, then these latterpoints will lie in a straight line for all values of each of theparallelogram angles from zero to 180°, and the ratio of the dis-tances EF, EG, and GH will remain… … Fig. 40. the angles of the parallelogram change. Let this point be G,Since GC and GH, radiating from G, cut the parallel linesDE and CH^ we have GD\DE :: GC: CH. : Also, for similar reasons, ED\DG\\EA\AF. Now since the sides of the parallelogram, as well as all theintercepts, AF, GD, DE, and CH,…
