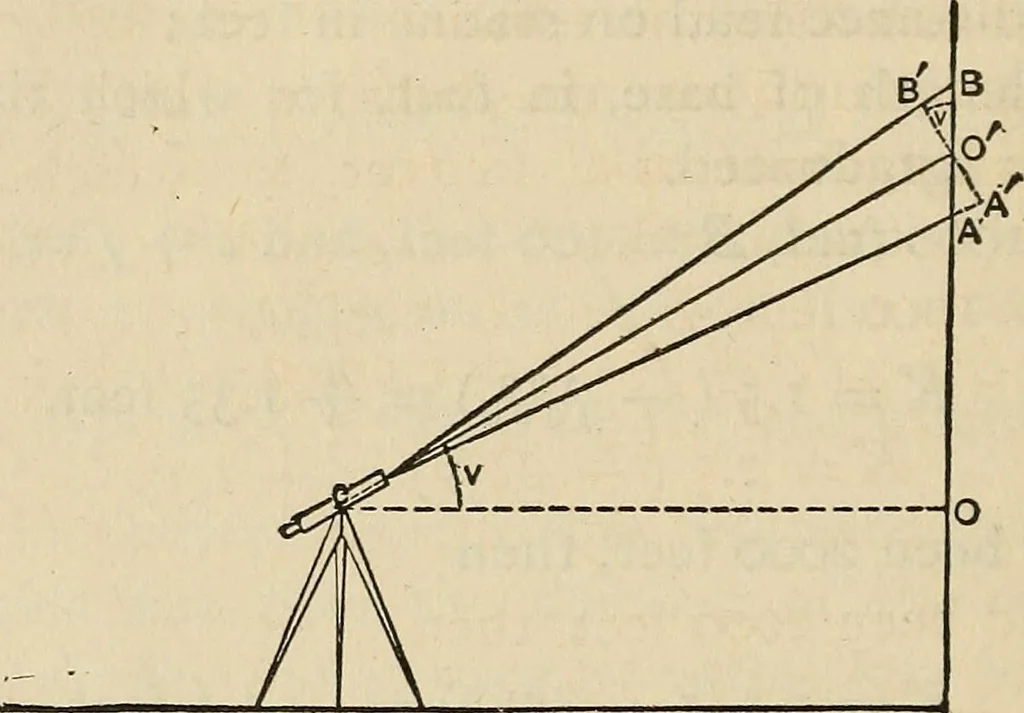

ons. 203. Adaptation of Formulae to Inclined Sights.—Theprevious discussion is applicable to horizontal sights only. 232 SURVEYING. If the rod be held on the top of a hill, and the telescopepointed towards it, the reading on the rod will give the lineardistance from instrument to rod, provided the… … Fig. 62. increased in the ratio of i to the cos of the angle with thehorizon. Thus, the space AB (Fig. 62) for the rod perpendicularto the line of sight becomes AB for the rod vertical. ButAB ^ABcosv.^ Let AB = r, the reading on the stadia for perpendicularposition; and Let AB = r, the actual…
