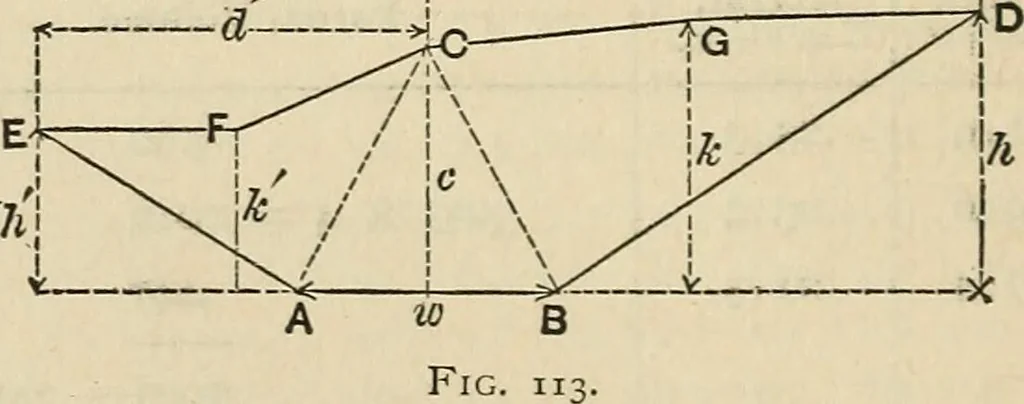

n the page. Example 2. Five-level Ground having four Warped Surfaces.—Find thevolume of a prismoid of which the following are the field-notes, the width ofbed being 20 feet, and the slopes i^ to i: II. 12. 28.94-12^6 27.1 I5-0-\-12.0 12.5 o + 18.6 o 20.0 -[- 21.0 18.5 43-0-f- 22.0 40.3 4-II.4 4… … Let ABDGCFE be the cross-section. This may be separated into the tri-angle ABC, and the two quadrilaterals BCGD and ACFE. These areas areone half the areas of their enclosing rectangles, which areas are respectivelycw^ kd, and kd. Therefore the area of the section is A =: \{cw-{-kd-\-kd) (i) If the…
