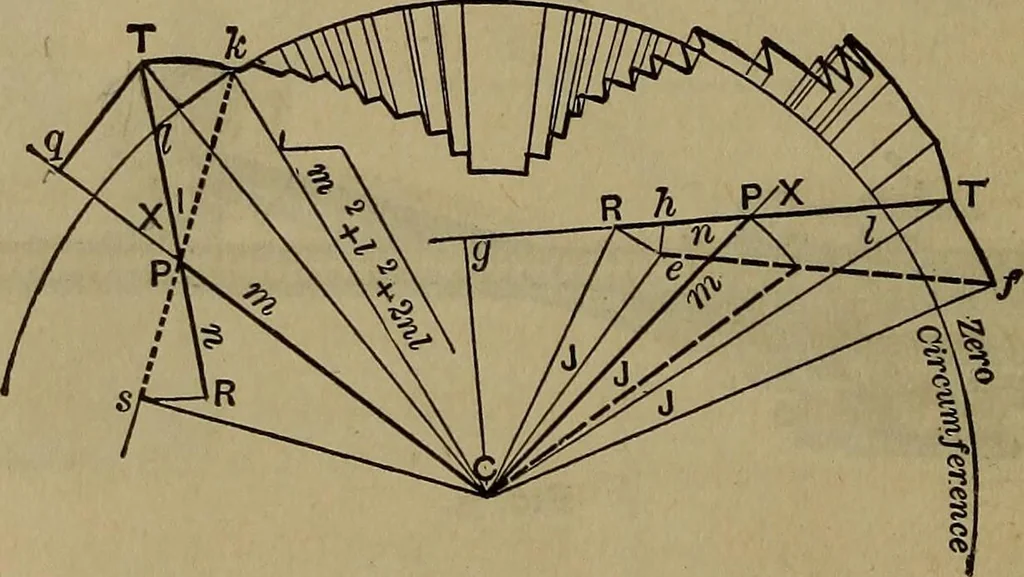

is parallel to the arm h, and moves with a minimumamount of friction. It is evident that any motion of thewheel c in the direction of its axis would not cause it .to re-volve, while any motion at right angles to this axis is fullyrecorded by the wheel. The arm ei is of fixed length, whilethe length… … Fig. 36. is that of revolution on C as a centre, causing P to move in acircular arc. RT is the other arm, revolving on P as a centre,and carrying at the fixed distance RP (== ri) from Pa. rolling-wheel whose periphery touches the paper at R and whose axisis parallel to RP. RTalso carries at a…
