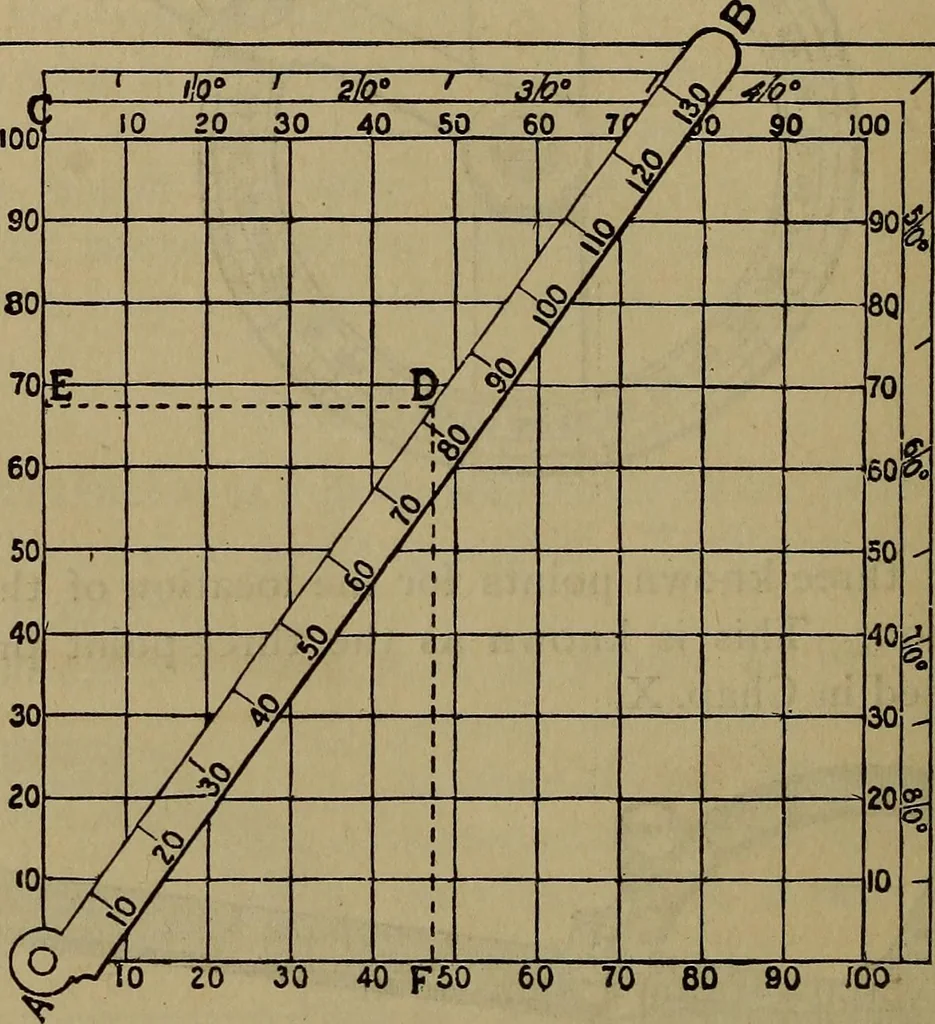

led, from 8 to 14inches in diameter, graduated to half or quarter degrees.They are printed from engraved plates on drawing- or tracing- 168 SURVEYING. paper or bristol-board, and are very convenient for plottingtopographical surveys. The map is drawn directly on theprotractor sheet, the bearing of… … Fig. 47. angular graduations on its circumference, or sides, and dividedover its face by horizontal and vertical lines, like cross-sectionpaper. A movable arm can be set by means of a vernier toread minutes of arc, this arm being also graduated to readdistances from the centre outward. Having set…
