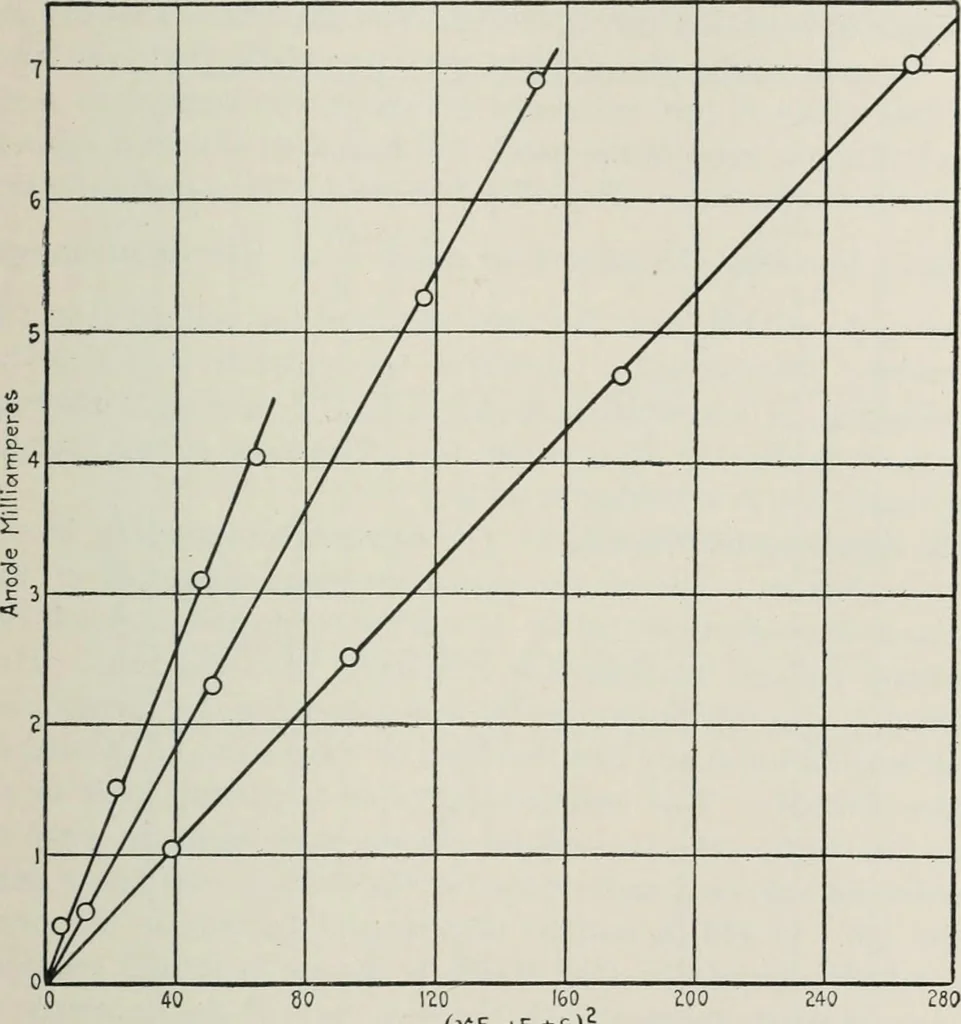

nd the current in the plate circuit observed as a functionof the plate voltage Ep. Since ro was zero Ep was always equalto Eb, the plate battery voltage. The grid being kept at a constant negative potential Eg with respect to the filament, current could 771not be established in the plate circuit… … Fig. 78. and since /x could be determined as explained above, this equationcould be used to give e. Once n and e are known the observedcurrent can be plotted as a function of the expression (f-.-)^ for arbitrary values of Ep or Eg. Some curves obtained in this wayare shown in Fig. 78. If we obtain…
