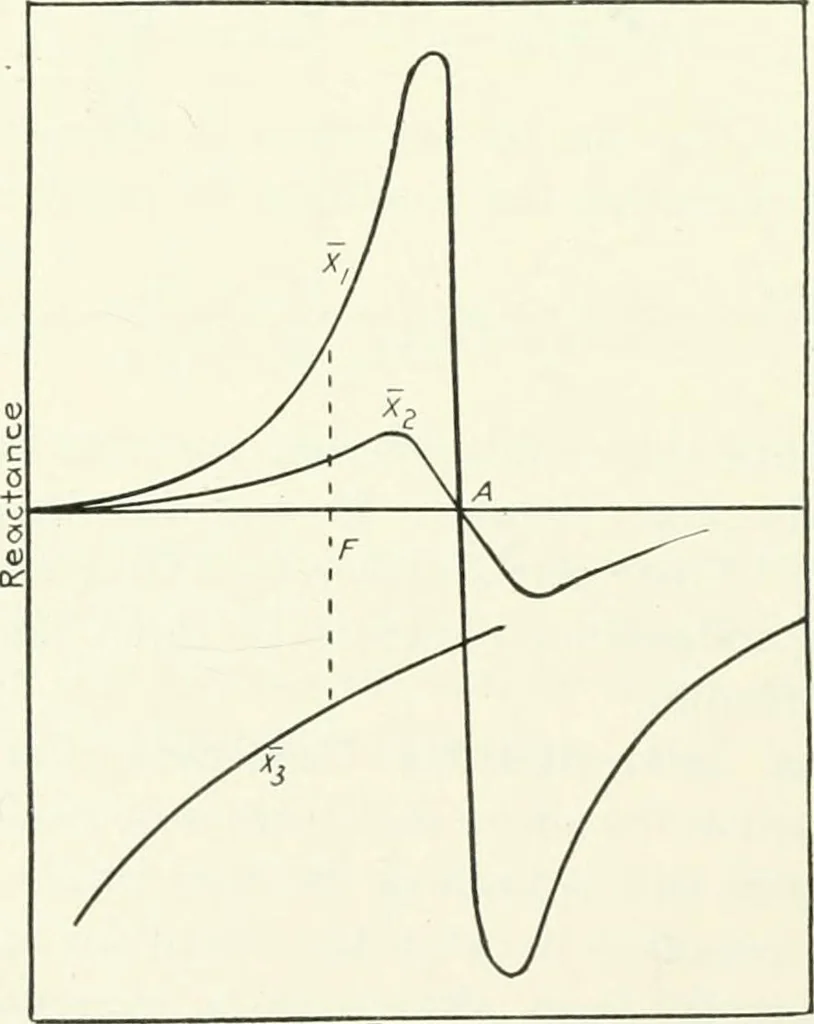

uuu—e^iQMJ mm- MFig. 161. is the circuit formed by the capacity Cz between grid and plate,and the inductance Li and Lo in series, the total inchictance being … Frequenc;^ Fig. 162. L]_-\-L2-\-^M. The effect of the capacity Cs is to make the fre-quency of oscillation different from that which would be obtainedfrom a simple circuit CL\. The reactance-frequency curve of the VACUUM TUBE AS AN OSCILLATION GENERATOR 287 ciicuit CLi Is shown by the curve marked…
