The thermionic vacuum tube and its applications (1920)
Van der Bijl, Hendrik Johannes, 1887- · New York McGraw-Hill Book, Co · leaf 325

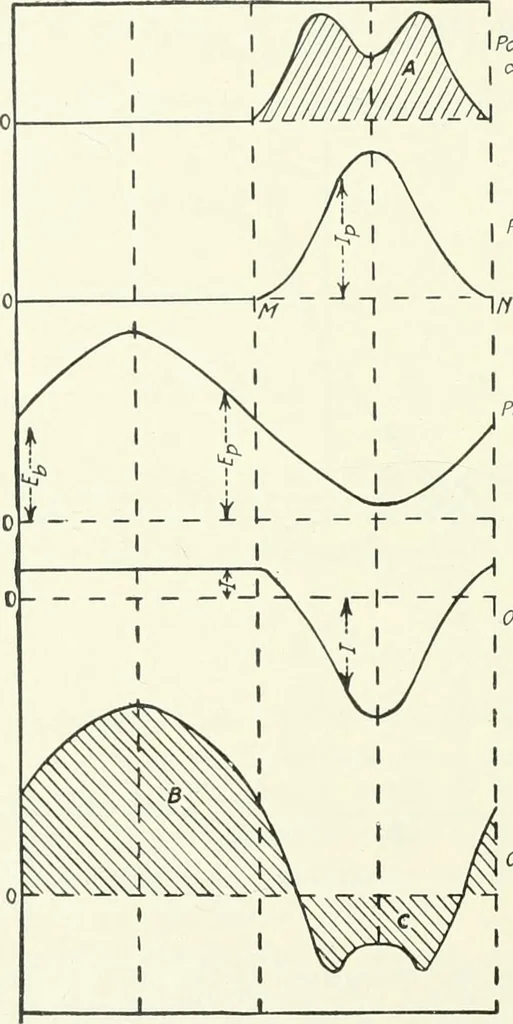

e plate potential would hardlyever drop down to zero because when it drops so low as to becomeabout equal to the simultaneously occumng instantaneous value of 302 THERMIONIC VACUUM TUBE the grid potential, the electrons coming from the filament wouldbe diverted to the grid and the plate current… … I P/arf-e Current PIcif-e Poivnhaf Output- Current Output Power Fig. 175. in the manner described above, can be explained with referenceto the curves in Fig. 175. These curves are drawn for the con-ditions that current to the plate flows only during part of a cycle,and that the plate potential when…
Telegraph, Wireless
