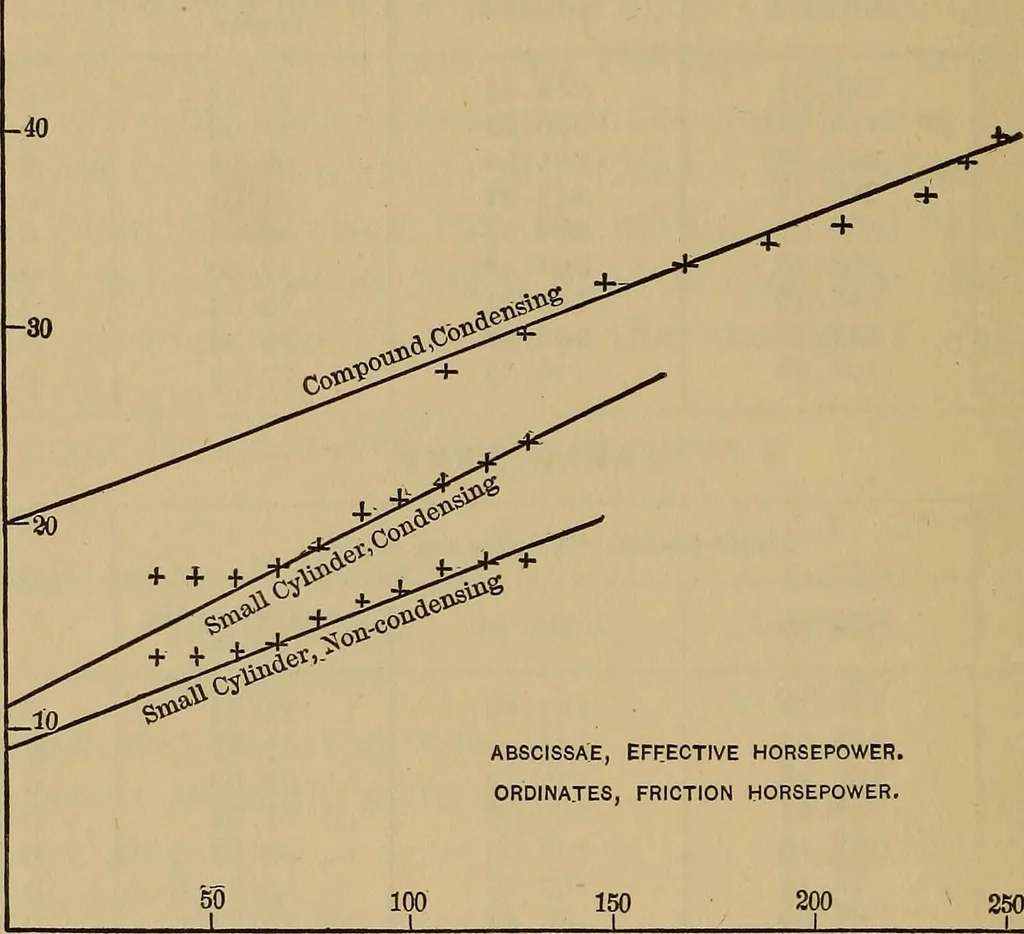

7 13 .88 0.830 8 58.04 71.72 13 .68 0.809 9 47-99 61.55 13 .56 0.779 lO 37.94 51-34 13.40 0.738 398 THERMODYNAMICS OF THE STEAM-ENGINE. The results of all of the tests are plotted in Fig. 78 withthe effective horse-power for abscissae, and with the frictionhorse-power for ordinates. The lines may… … ABSCISSAE, EFHECTIVE HORSEPOWER.ORDINATES, FRICTION HORSEPOWER. 250 Fig. 78. Equation (311) for these several series of experiments be-comes : Compound condensing, /^ = 20 + 0.077P;Small cylinder condensing, F — i\ +0.107P;Small cylinder non-condensing, F—(^-\- 0.062P. When the engine ran with the…
