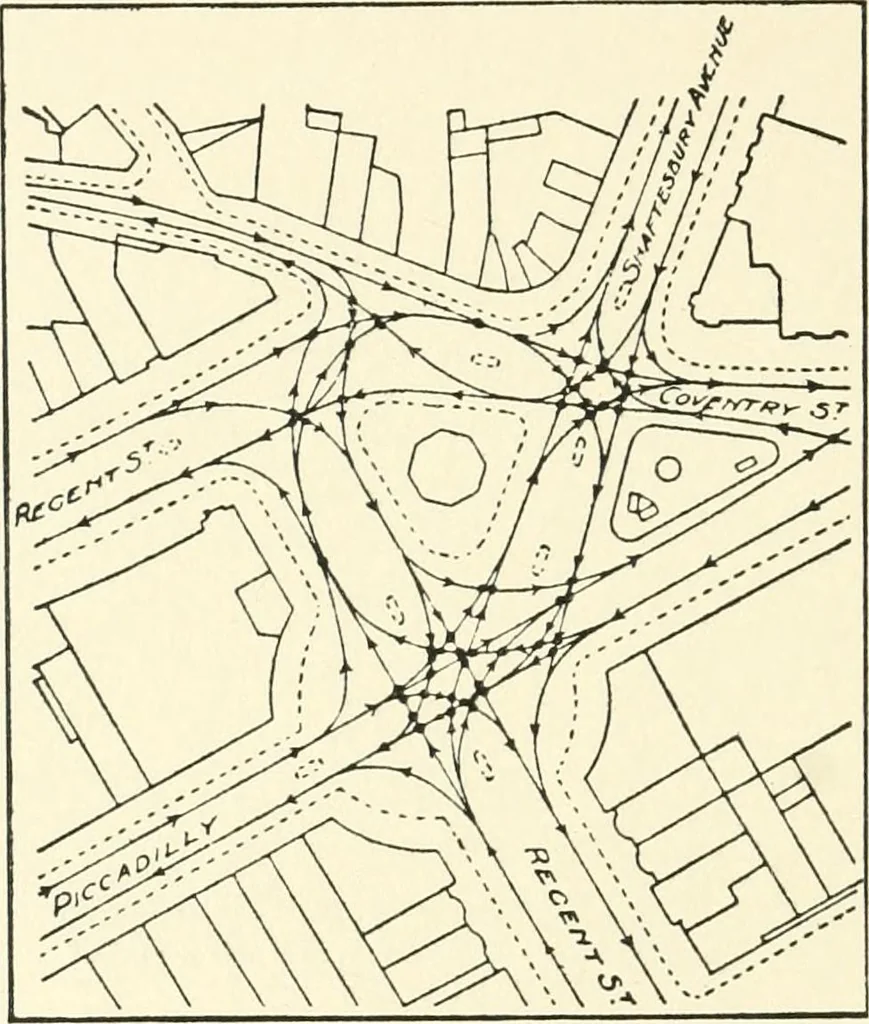

ion of converging and diverging lines resultingfrom the gyratory regulation of vehicular traffic. Fouradditional curves are here drawn to illustrate the 159 TOWN PLANNING manner in which vehicles can pass directly from everystreet to the next street on the left hand without thenecessity for… … FIG. 54.—PICCADILLY CIRCUS, LONDON Circus in its present enlarged form is given in Fig. 54.The additional area to the north actually doubles thenumber of natural intersecting points in the originalcircus, as demonstrated by the thirty points of directconflict. At the Quadrant end of Regent Street…
