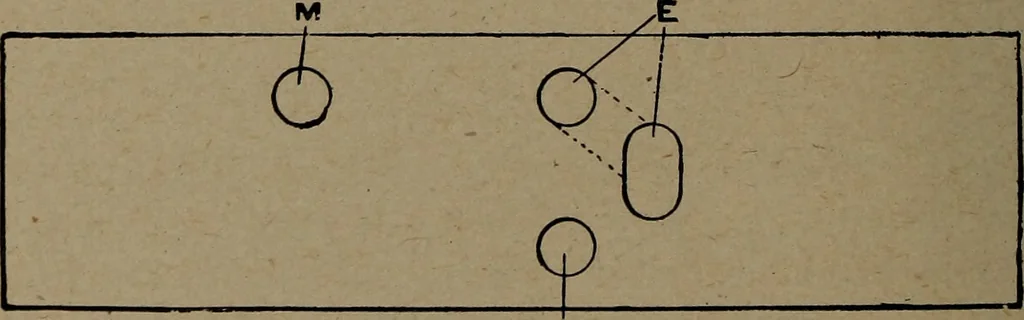

PLAN OF SLIDE VALVE … \SLIDE VALVE SEAT Fig. 17. Slide and Seat NEW YORK AIR BRAKE 353 nects ports U and W in the slide valve with port E and Lin the seat, thus connecting the auxiliary reservoir, controlreservoir and cylinder with the safety valve. When theslide valve has been moved out to service position, the…
