A treatise, giving a thorough description of the properties and supply of the fibres, as well as the various processes required for converting wool, cotton, silk from fibre to finished goods, covering both woven and knit goods ... construction of the most modern improvements to preparatory machinery ... accessories relating to construction and equipment of modern textile manufacturing plants .. (1895)
Posselt, E. A. (Emanuel Anthony), 1858-1921 · Philadelphia, E.A. Posselt; London, Sampson Low, Marston & Co · leaf 378

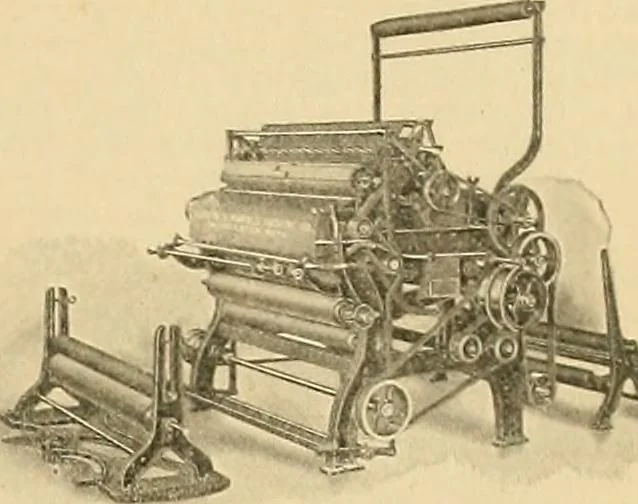

gether,especially at the seams; and the shear istherefore arranged so that the operatorcan lift the revolver with the feet, leavingboth hands free for straightening out andguiding in the goods whenever this may bonecessary. Previously this lifting of therevolver had to be performed by the… … Fig. 28. the use of both hands to properly effect the liftingof the revolver. Fig. 29 is a side view of such parts of a float threadshearing machine as will show the nature of thislifting mechanism. Letters of reference in the illus-tration indicate thus: A the main frame of the ma-chine; B the…
Textile fabrics · Textile industry · Textile machinery
