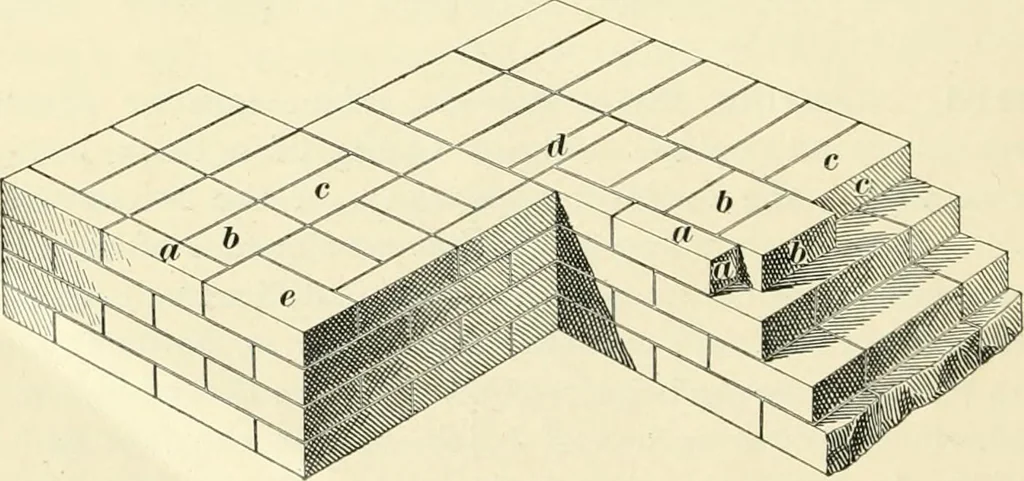

Fig. 80. The New York building laws require that where w^allsare faced with brick in running bond, every sixth courseshall be bonded into the backing by cutting the corners ofthe face brick, and putting in diagonal headers behind (asshown in Fig. 80), or by splitting the face brick in half… … Fig. 81. cut lengthwise, are .shown at a. At /?, are the three-quarterbats bonding in back of the face brick. The whole brick c MASONRY. 115 bonds on the inside of the wall <•/, the closer closing up theangle, and c is the whole face brick on the corner of the wall. 216. Fig. 82 shows the method…
