A treatise on architecture and building construction (1899)
International Correspondence Schools · Scranton, The Colliery engineer co. · leaf 126

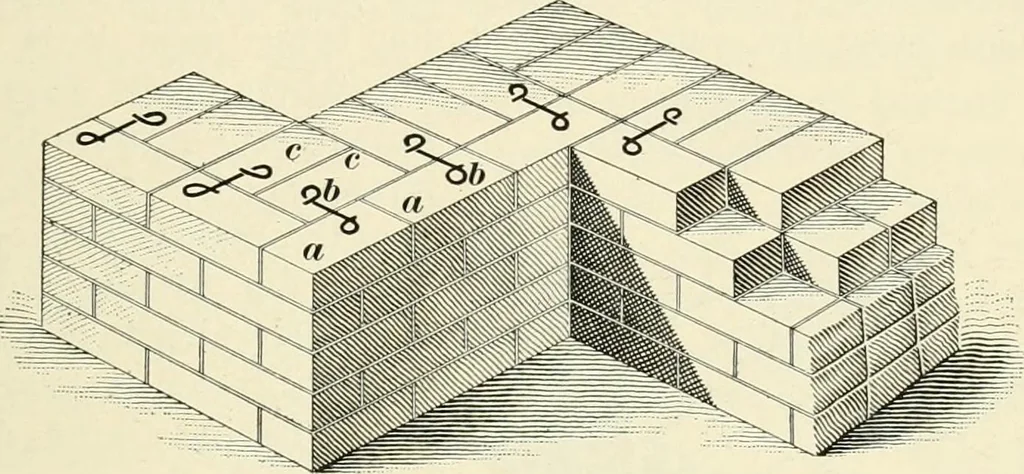

Fig. 81. cut lengthwise, are .shown at a. At /?, are the three-quarterbats bonding in back of the face brick. The whole brick c MASONRY. 115 bonds on the inside of the wall <•/, the closer closing up theangle, and c is the whole face brick on the corner of the wall. 216. Fig. 82 shows the method… … Fig. 82.twisted at the ends, as shown, to get a better bond, and arelaid in every sixth course of brick. The principal objectionto the use of steel or iron bonders is the danger of rust,although by the time their efficiency has been destroyed bythe action of rust, the mortar used should have…
