A treatise on architecture and building construction (1899)
International Correspondence Schools · Scranton, The Colliery engineer co. · leaf 189

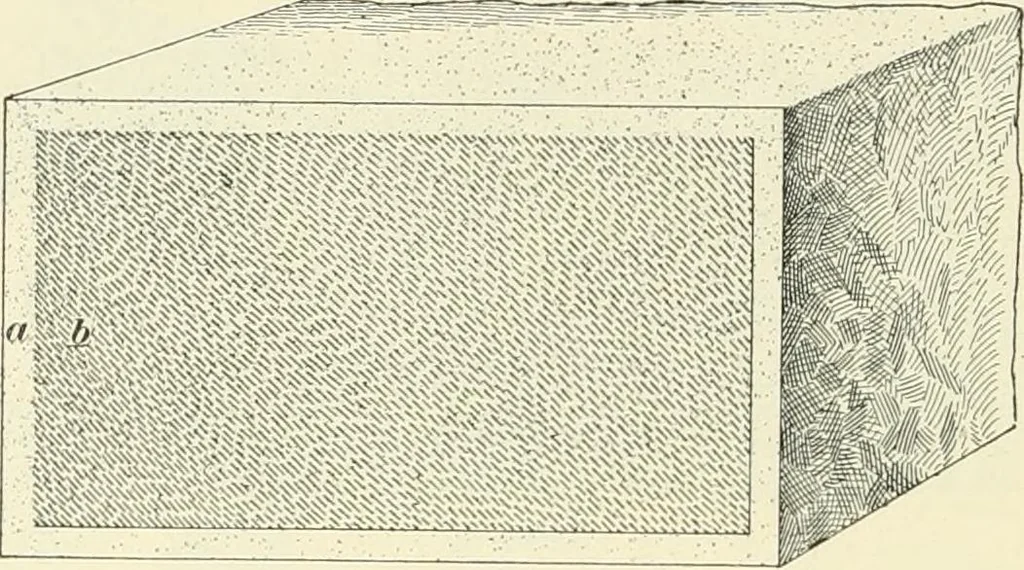

Fig. 6. fine pointed work, a being the draft line, and b the pointedsurface. 35. Tootli-Chiseled Work.—This is one of the cheap-est methods of working stone, and is done with the tooth 18 MASONRY. 8 chisel, shown at (d), Fig. 2, which gives a surface resemblingpointed work, but not as regular. … Fig. 7. 36, Tooled Work.—For this finish, a chisel from 3 to4|- inches wide—see {e), Fig. 2—is used, and the lines arecontinued across the width of the stone to the draft line(when one is used), as shown in Fig. 8. When well done,it makes a very good finish for sandstones and limestones.
