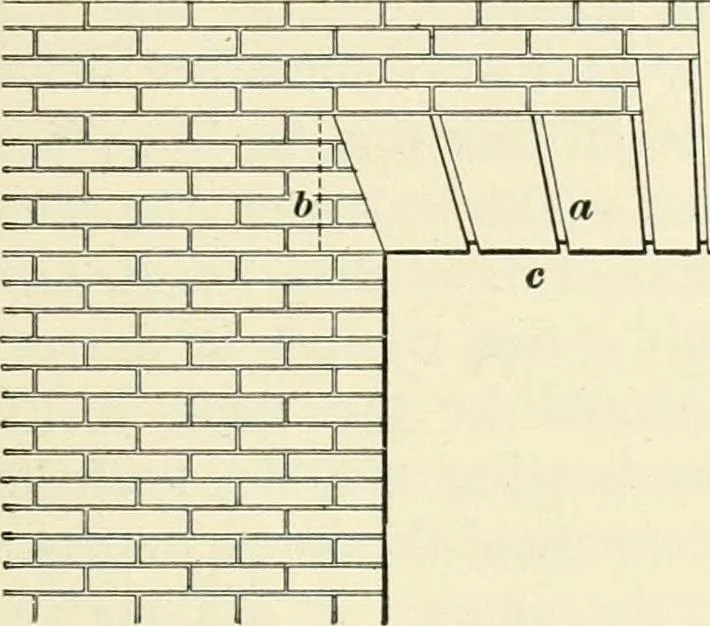

-pins are sometimes used to bind the stone together. 102. When an arch is so flat as to have practically norise, it should be cut out of one piece of stone, being reallya solid lintel with false joints cut on its face, as shown ata, a, Fig. 57. The. ends of this lintel sliould have a bearingon the… … 1 II A Fig. 57. If this method is too costly, the lintel may be cut in 3pieces, as shown at c^ d, and i\ and supported by a heavyangle bar, as described under Lintels. 103. Rubble Arelies.—For rough purposes, arches aresometimes built of rubble, as shown in Fig. 58, in which brepresents the wall…
