A treatise on architecture and building construction (1899)
International Correspondence Schools · Scranton, The Colliery engineer co. · leaf 405

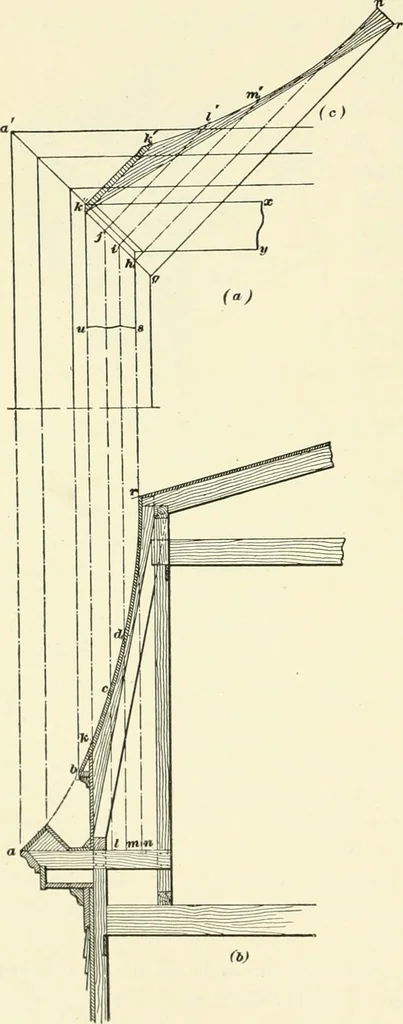

thesection {U) any num-ber of points, suchas r, c/, r, markingtheir intersectionswith the line kg, aty, /, //, and from thesepoints, and at rightangles to kg^ lay offthe lines jl, im\J I ii\ equal to c /, dm,and r;/ in the sec-tion (/^), we have, at/, ;//, //, points inthe curve of the an-gle rib… … 9 CARPENTRY. 75 143. In Fig-. 55 is a framing plan (a) and sectional ele-vation (/;) of a conical roof, the height of which is c d and thepitch d a. The rafters a b arenotched over the plate in thesame manner as though theroof were a phiin gable, butthe mitering of the upperends is somewhat…
Architecture · Building
Internet Archive · New York Public Library · Public Domain Mark 1.0. Free to use for anything.
![An illustration from Essai de physique, par Mr. Pierre van Musschenbroek ... avec une description de nouvelles sortes de machines pneumatiques, et un recueil d'expériences par Mr. J. v[an] M[usschenbroek] Traduit du hollandois par Mr. Pierre Massuet .. (1751)](https://img.insideoutlibrary.com/img/200/ia-essaidephysiquep02muss-252-52.webp)
