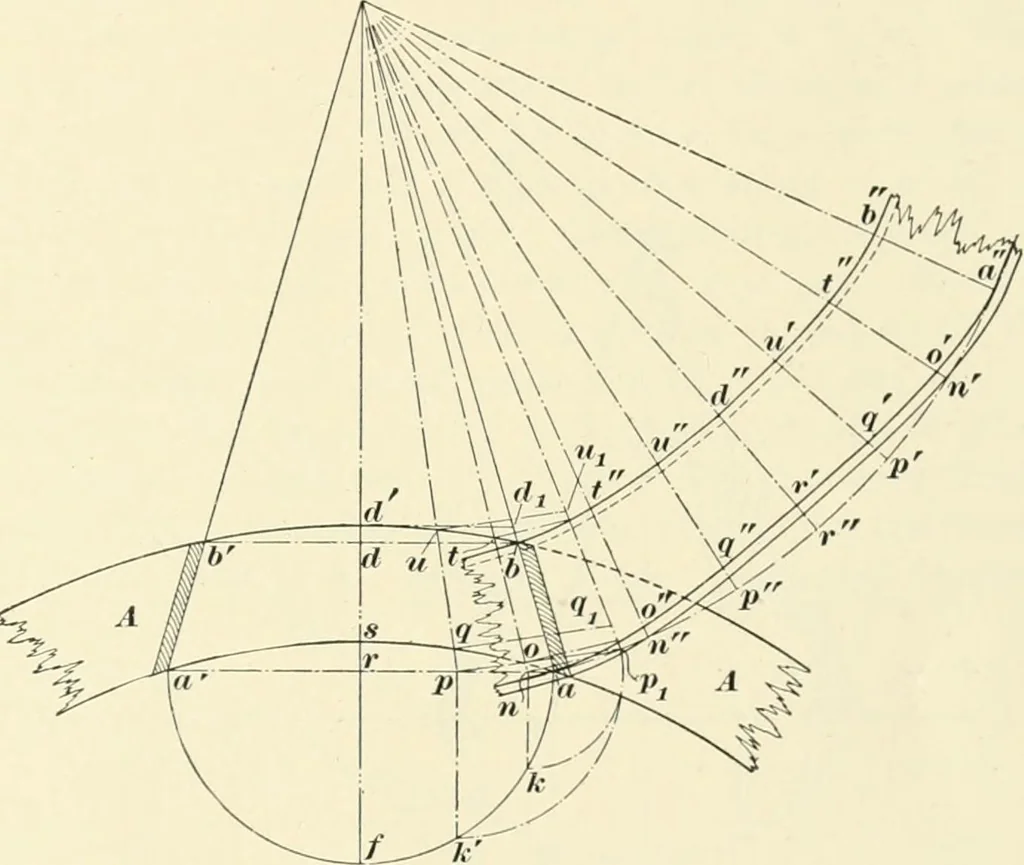

erpendicular to aa\also, draw ep and c n. With ^ as a center and r « as radius,draw the arc a a of indefinite length, and lay off from a onit the distances an, np\ etc., equal to aJc, kk, etc., the § 10 JOINERY. 65 number of divisions beini;- twice those laid oil on af\draw lines from c to «, p,… … Fig. 45. oi pq and qu, and, laid off as shown on the proper lines,corresponding to ep, as cp and r/, will give points on thedevelopment of the soffit. All other points being found inthe same manner, the complete development is <^^/<^rt:r(7.The outer full line and the dotted line represent the…
