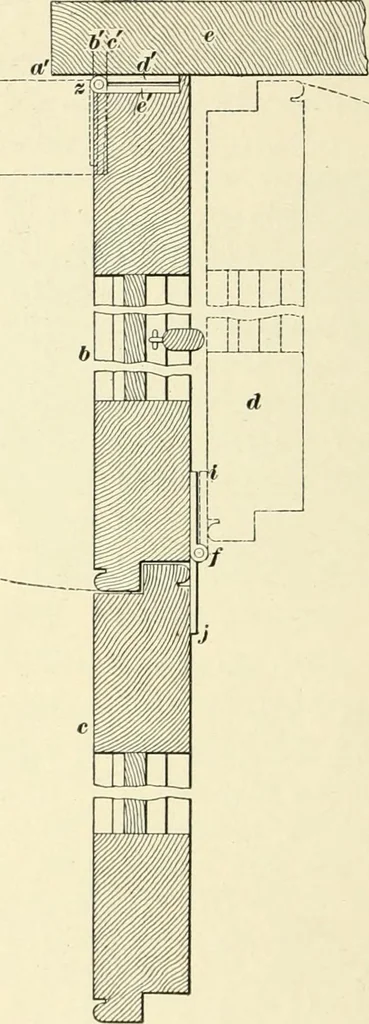

then, when /; swings on its hingesto the position a, the edge of the shutter will be at r, whichis 1% inch from //, or \\ inch from a\ therefore, in makingthe shutters, the width must be taken from c in order toshow the |-inch margin of the casing when the blinds areopen. The flap hinge ifj is… … Fig. (55. shutter d from striking, when folding the two shutters in thebox as previously explained. 1()7. Ilinjiinjjr Otitside Blinds.—Fig. 66 shows a planof the blinds of a frame house; b shows the position of theblind shutter when closed, and c shows the blind shutteropened; at a is seen the…
