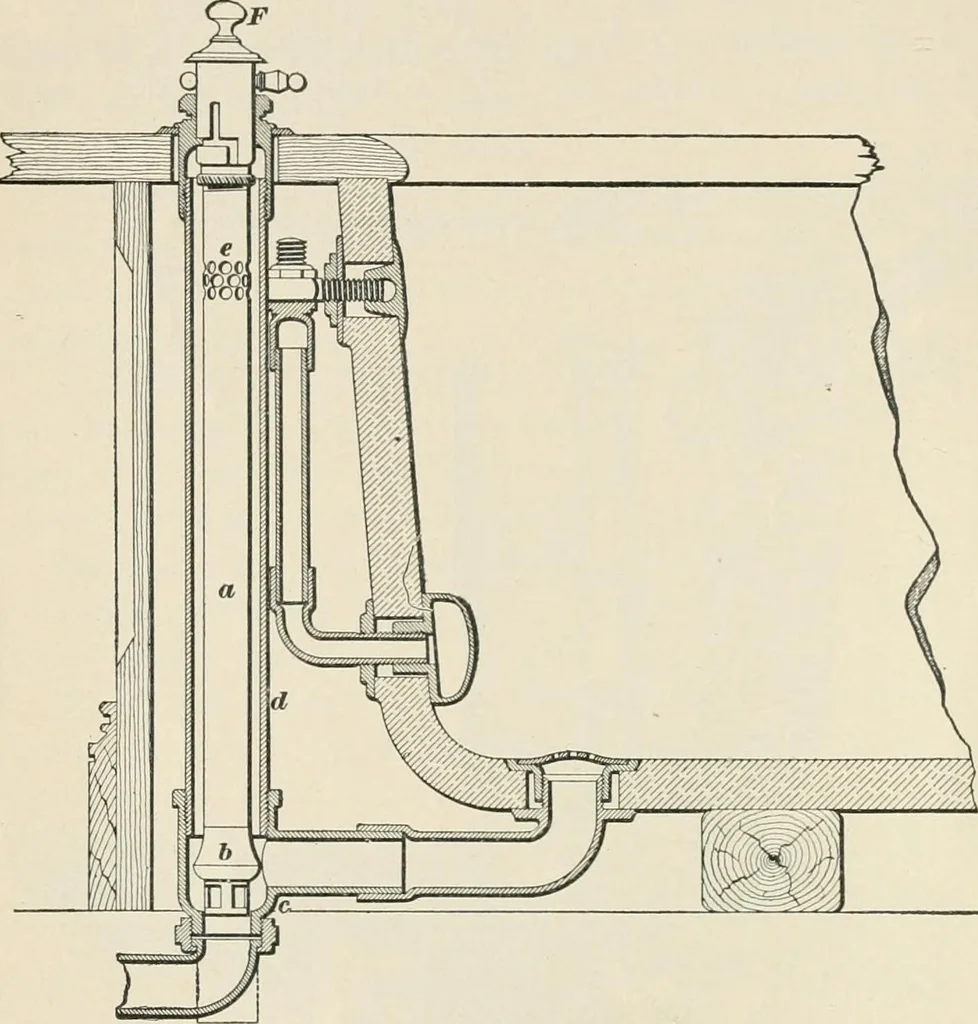

hown.The outer tube is provided with a rubber ring d, which makesa water-tight joint with the seat when it is dropped downupon the bottom. A bent coupling c is shown attached tothe waste outlet. If desired, a straight coupling may beused. 14 PLUMBING AND GAS-FITTING. 10 16. A better combination of… … Fig. 13. in the tub, imtil it reaches the perforations e\ it overflowsthrough these and passes down the interior of a to the wastepipe. The inner tube is provided with a handle /^having asuitable slot and catch by which it can be lifted and sus-pended, as shown. These combined waste and overflow…
