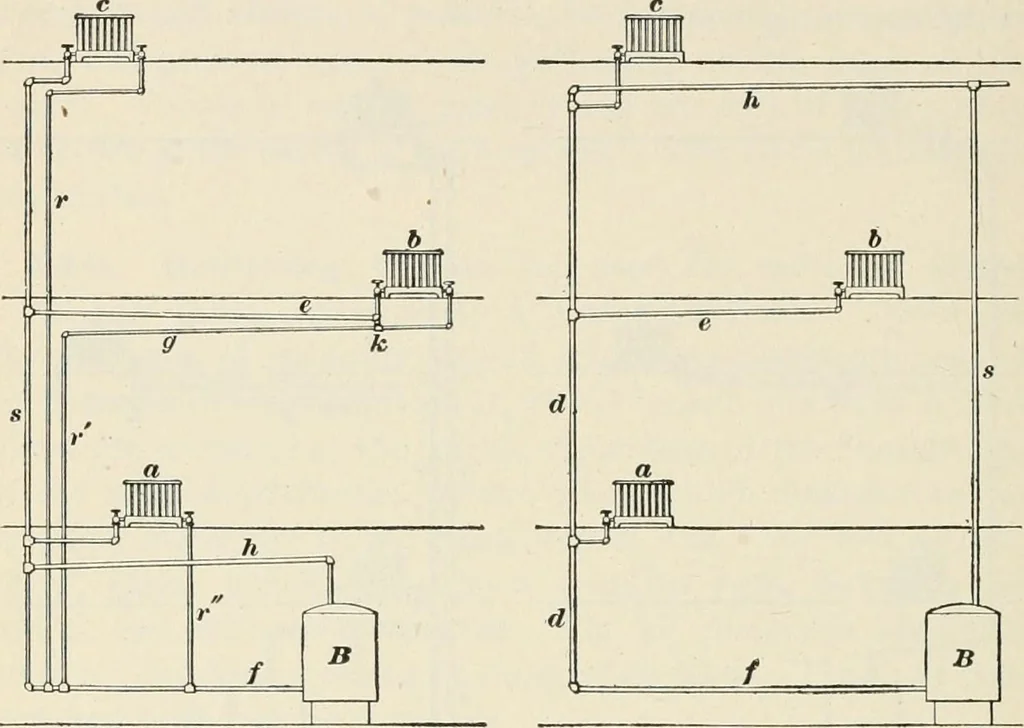

off and prevented from enter-ing the radiator. The steam main 1i is also inclined, if it is 96 HEATING AND VENTILATION 17 of any considerable length, so that the water formed withinit will run towards the foot of the riser s. All of the waterformed in the pipes /i and s is drained off by the relief… … Fig. .56. Fig. 57. Fig. 55. The returns, however, are different, each radiatorbeing provided with its own separate return pipe, as shownat r, 7\ r. 145. The drop system is shown in Fig. 57. The steamsupply passes up the riser s to the top of the system, thencealong the horizontal pipe //, and…
