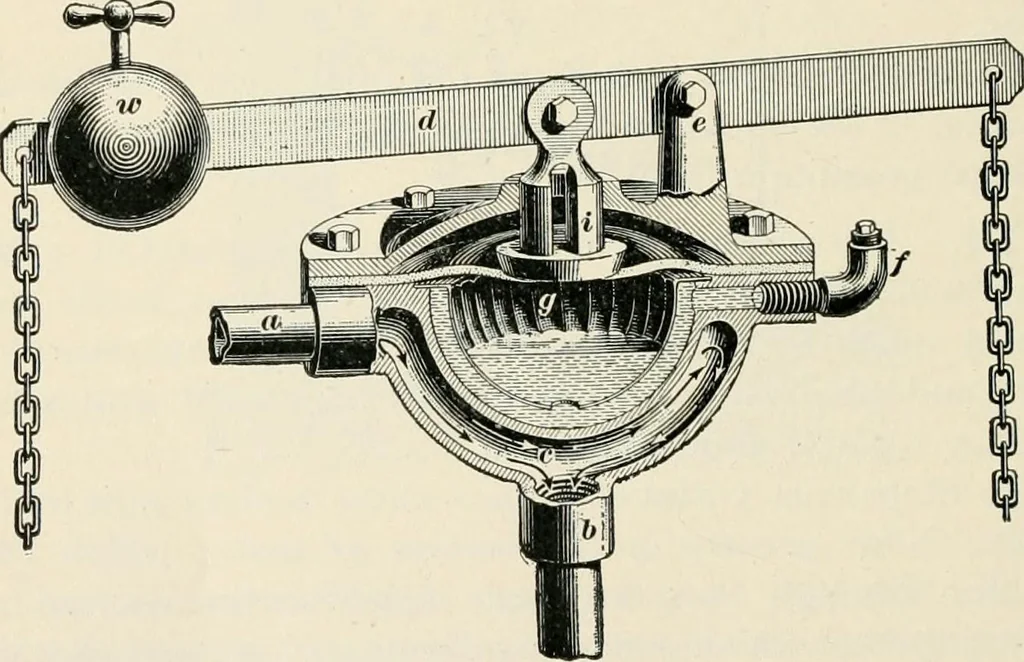

ators.—It is more difficult to auto-matically regulate the draft in a hot-water heater than in asteam boiler. In the latter case the regulator is operatedby C^Q pressure of the steam, and the pressure is nearly thesame in all the pipes which lead from the boiler. In a hot-water apparatus, however,… … Fig. 66. efficient class is that which utilizes the expansive force ofsome volatile liquid, which is acted upon by the hot waterpassing through the apparatus. A regulator of this kind isshown in Fig. 66. It contains a diaphragm of ordinary con-struction, which operates the lever d in the usual…
