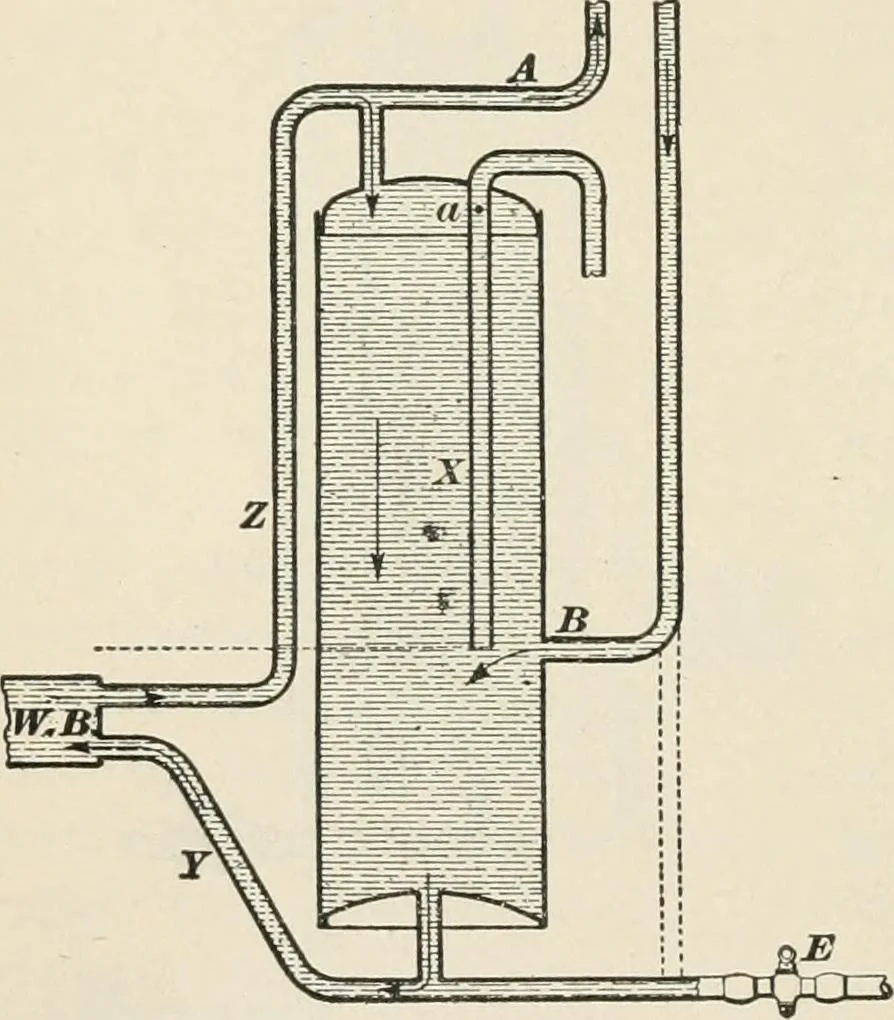

terwithout delay afterstarting up the fire,another system of hot-water connections is re-sorted to. This is shownin Fig. 28. The pipe Zis connected directly tothe hot-water distribu-ting pipe A, as shown.Thus, the hot water asit comes from the water-back can go direct to the fixtures, or if none is… … Fig. 38. §10 PLUMBING AND GAvS-FITTING. 41 appears. This is always annoying, and when water is scarce,it is very troublesome. To secure hot water at each fixturepromptly vipon the opening of the faucet, a return or circu-lation pipe must be used. This pipe is joined to the hot-water supply pipe…
