A treatise on surveying, comprising the theory and the practice ; (1887)
Gillespie, W. M. (William Mitchell), 1816-1868, Staley, Cady, 1840- [from old catalog] ed · New York, D. Appleton and company · leaf 179

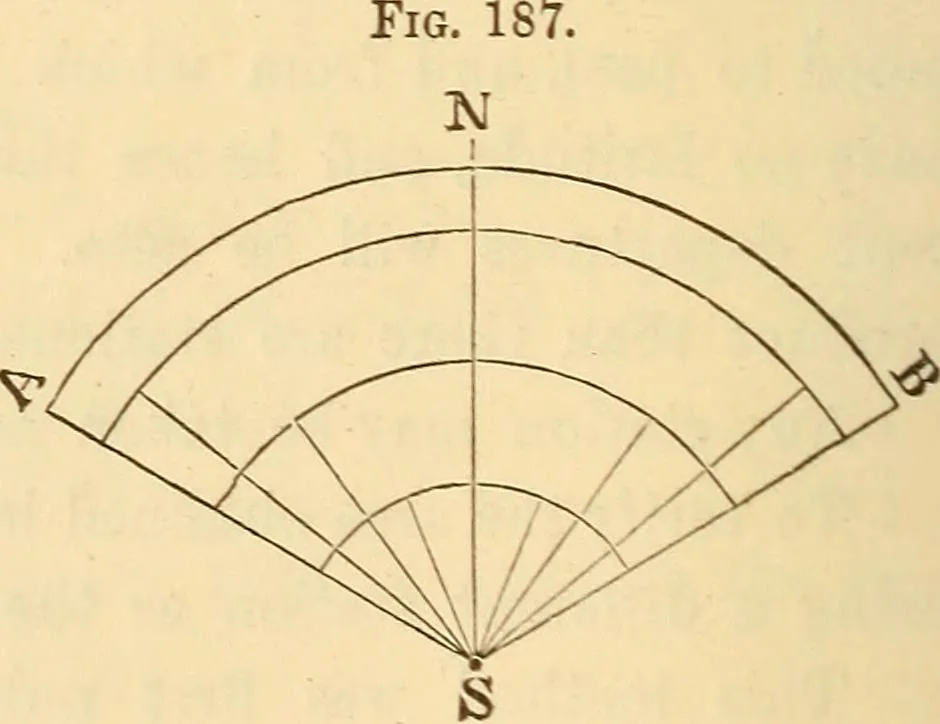

. To determine the True Meridian. 262. By Equal Shadows of the Sun. On the south side of anylevel surface erect an uprightstaff, shown in horizontal pro-jection at S. Two or threehours before noon, mark theextremity, A, of its shadow.Describe an arc of a circlewith S, the foot of the staff,… … THE DECLINATION OF TEE MAGNETIC NEEDLE. 165 touches the arc at another point, B. Bisect the arc A B at N.Draw S 1ST, and it will be the true meridian, or north and southline required. For greater accuracy, describe several arcs beforehand, markthe points in which each of them is touched by the…
