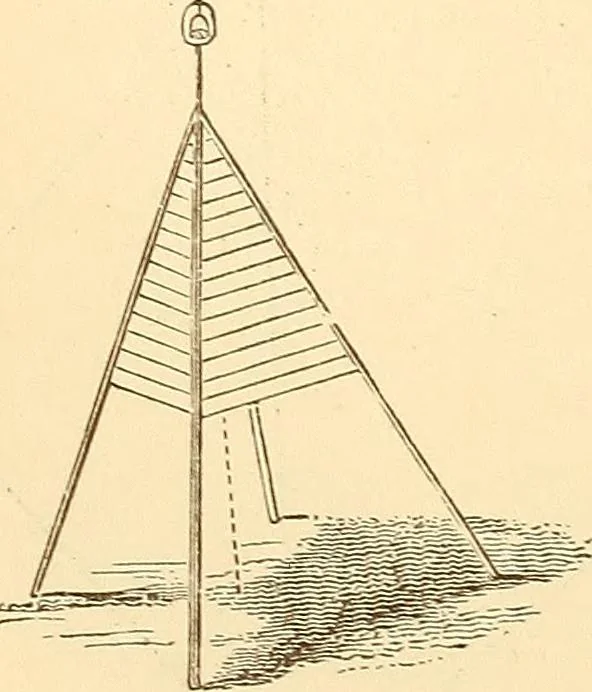

r four timbers framed into apyramid, as in Fig. 504, with a long mastprojecting above, fulfill the first and lastconditions. The mast may be made verti-cal by directing two theodolites to it, andadjusting it so that their telescopes followit up and down, their lines of sight beingat right angles to… … PLANE SURFACES. 453 signal-staff, by a bolt passing through their ends and its middle.Fig. 505 represents the signal as framed on the ground ; Fig. 506shows it erected and ready for observation, its base being steadied Fig. 505. Fig. 506. Fig. 507.
