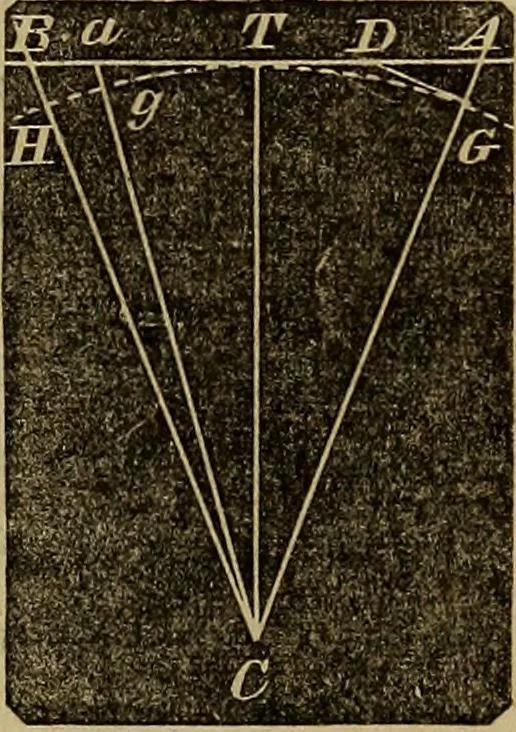

earth CG or CT. From G, draw GD, at right angles to A 0;then the two triangles ATC, AGD, are equi-angular and similar, and give the proportionCT:TA::DG: GA. Practically. —TA is a very short distance compared to CT, forTA, the distance within which we can take observations, is nevermore than two or… … 156 SURVEYING. Now, in the preceding proportion, in the place of DG, put itsequal -J TA, and we shall have, CT : TA : : \TA : GA. Whence, AU-JjjjJ Also,,«=^ (1) That is, The square of the distance, divided by the diameter of theearth, is the distance between the apparent and the tme level. We can…
