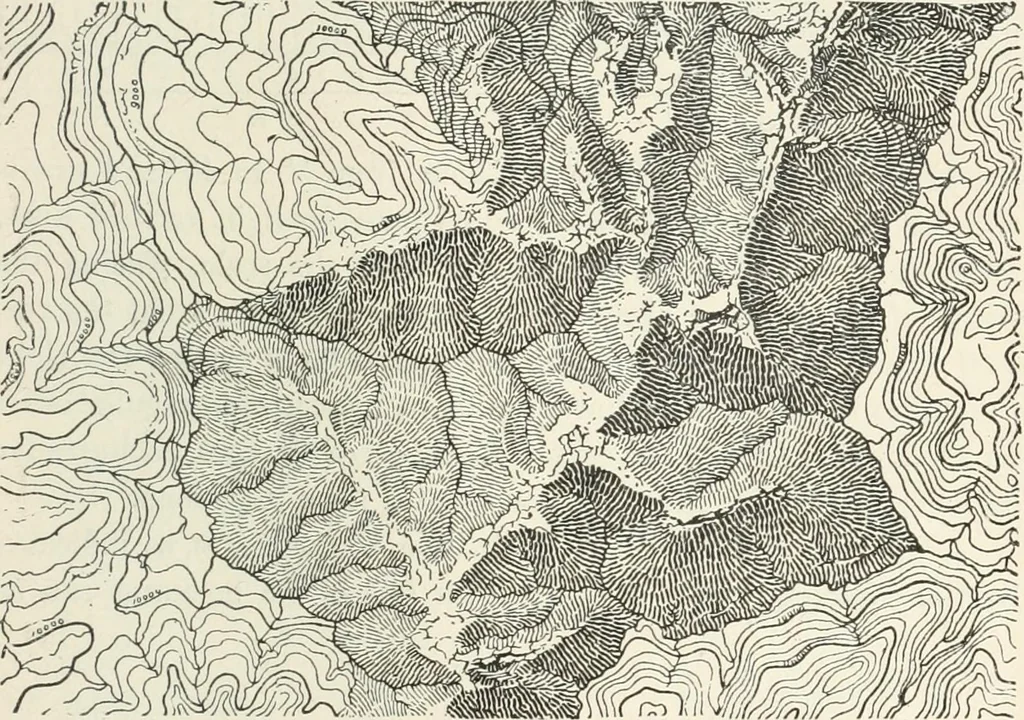

th obliqueillumination. The Austrian Scale substitutes 50° for 45° in Lehmanns scale,and has ten grades of shade, using the same convention for slopesof r to 5°. The United States Coast and Geodetic Survey Scale of Shadeand Working Scale.—Lehmanns scale, from 5° to 25° inclusive, THE VERTICAL… … yond 40° the increased intensity of shade is produced by keeping thesame space between the hachures as for 40°, while increasing thespace in which a certain number of hachuresare placed by 25 per cent for a 45° slope, 50per cent for a 55° slope, 75 per cent for a 65°sl6pe, and 100 per cent for a…
