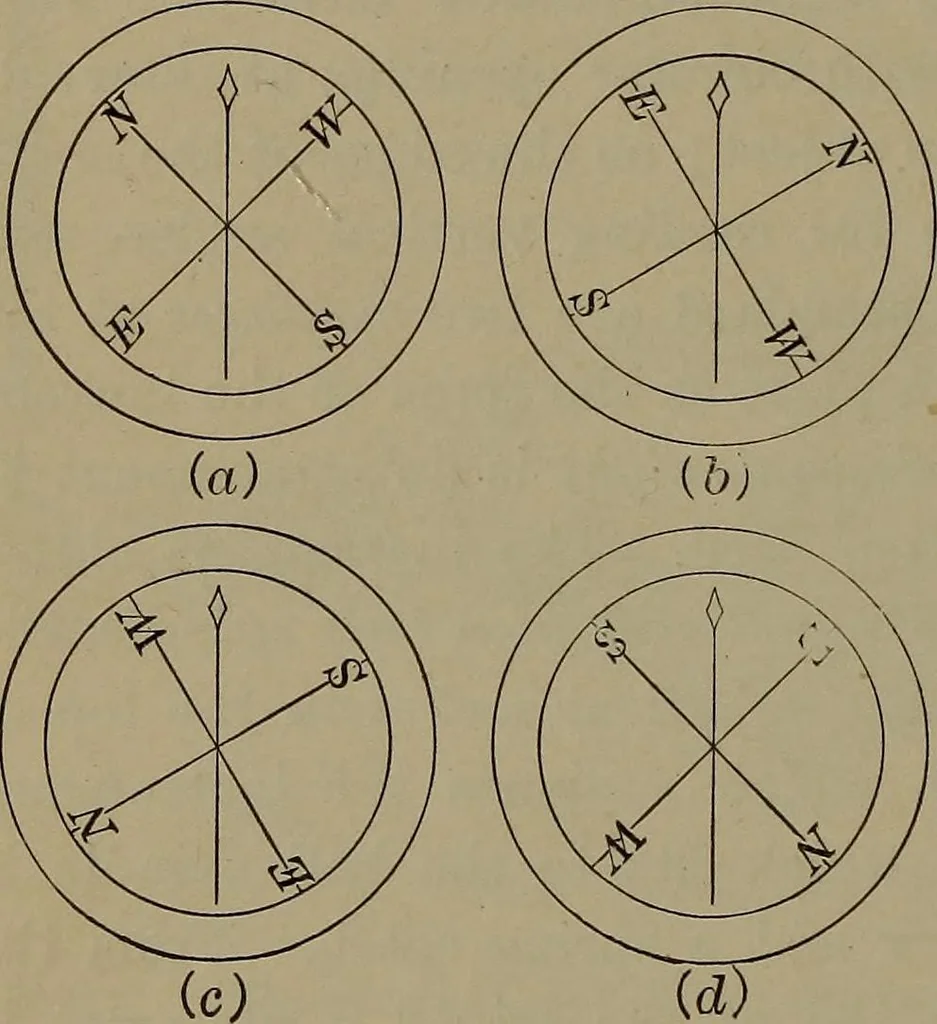

ringof a line proceed as fol-lows : Place the compassso that the Jacobs staff,or plummet of the tripod,is directly over one end ofthe line, and level by press-ing with the hands on themain plate until the bub-bles are brought to thecentres of the spirit levels.Turn the south end of the instrument… … Fig. 9 FIELD INSTRUMENTS 221 of the compass circle; secondly, write the number of degreesbetween the north end of the needle and the nearest zero mark ;thirdly, write E. or W. according as the north end of the needleis nearer E. or W. of the compass circle. Thus, in Fig. 9 (a), thebearing is N. 45°…
