Twentieth century hand-book for steam engineers and electricians with questions and answers; a practical non-technical treatise .. (1913)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & company · leaf 1133

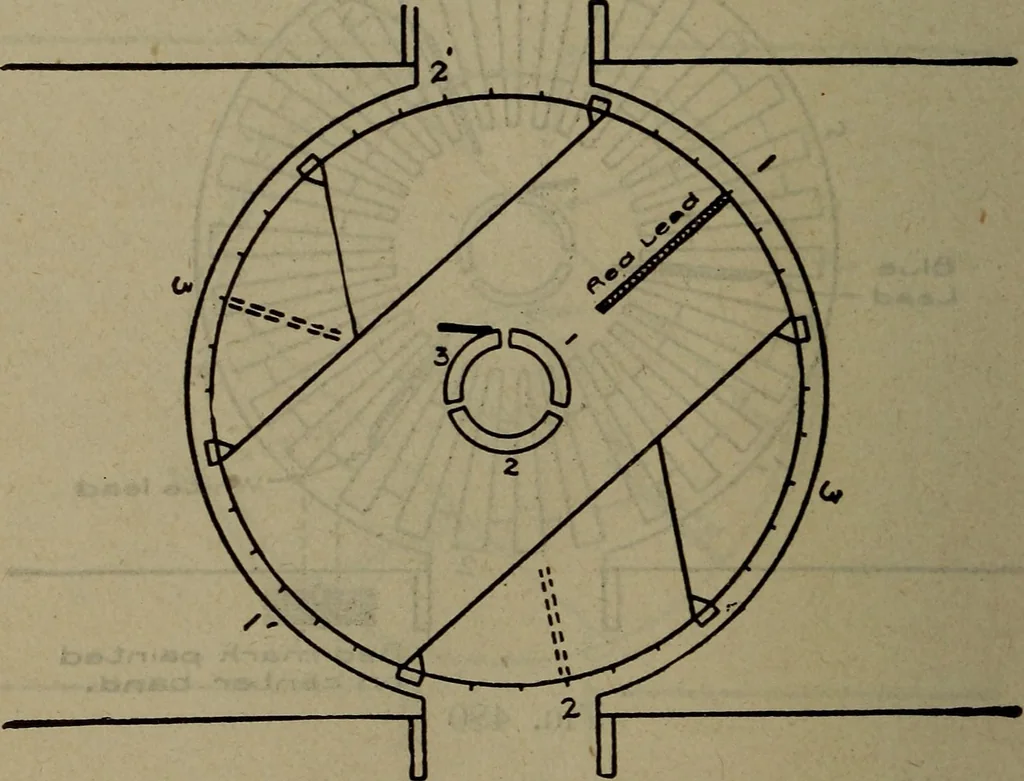

nch positive 1/4 iiich negative% inch negative1/4 inch positive 1104 Steam Engineering Place the screws in the binding posts at the lower endsof the sliding connections^ and put on the dash pot con-nections between the brushes, with the heads of the con-necting screws outward. In every case the… … Fig. 481 When all connections have been made, make a carefulexamination of screws. Joints and all moving parts. Theymust be free from stickiness, and bind in any position. To determine when the machine is under full load, noticethe position of the regulator armature, which should bewithin % in. of…
