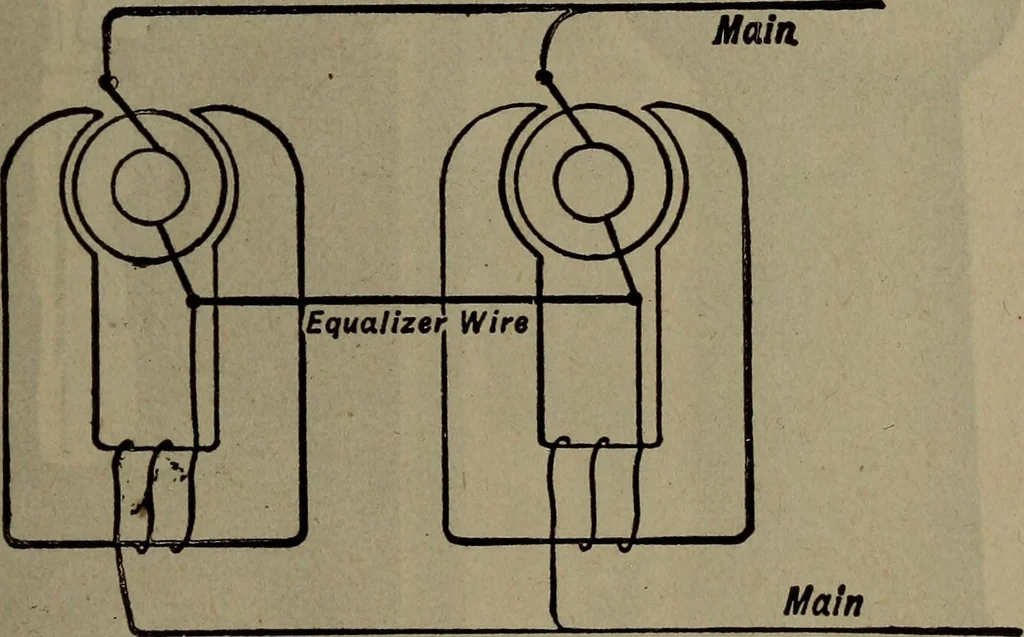

ice puts a main switch at the machine,so that the cables from machines to board may be cut offfrSin generator. It is also good practice to run the equal-izer cable along in ducts from machine to machine withoutcarrying it to the board. This equalizer connects the junctions of series field andbrush… … FiG. 549 EQUALIZER pacity and in Fig. 551 for 4,000 ampere (and larger) ma-chines. The upper switch being the main switch. Therear view of these large capacity pedestals is shown in Fig.556. A better view of the 4,000 ampere toggle operated mainswitch is given in Fig. 553. The quick-break S. P.-S.…
