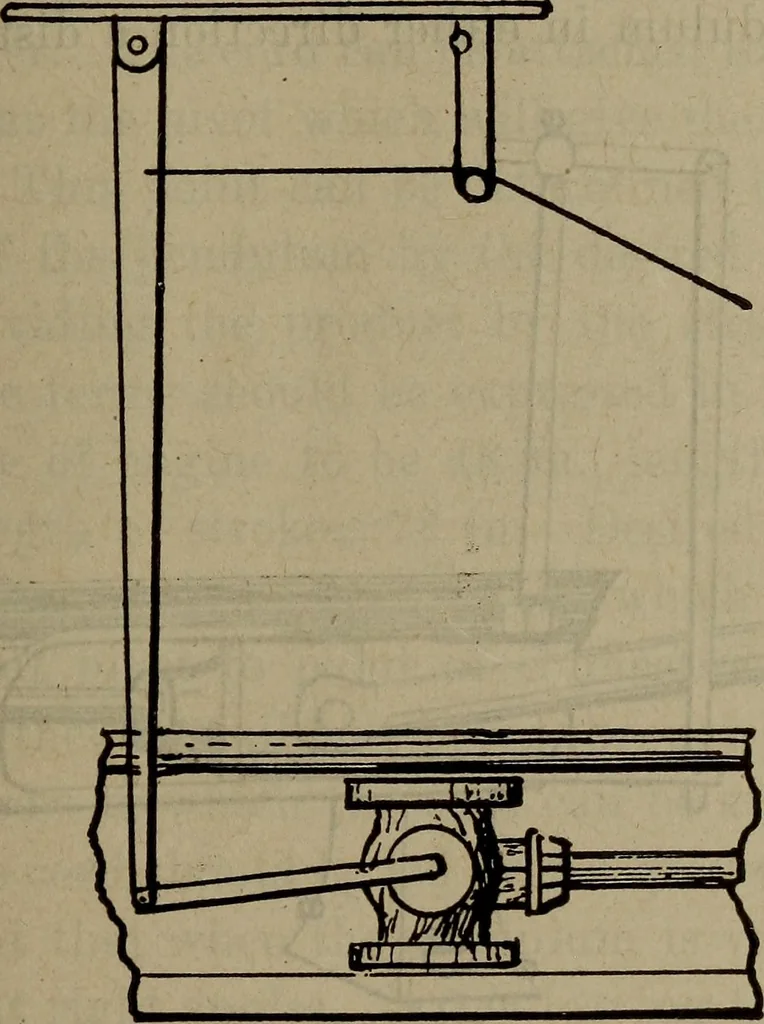

is horizontal the bar or The Indicator 477 pendulum is to be pivoted at a fixed point directly above^ andin line with the side of the crosshead, as that is generallythe most convenient point of attachment. The pivot canbe fixed to a permanent standard bolted to the frame ofthe engine^ or it may be… … FiG. 171 nection with the crosshead is best accomplished by meansof a short bar or link. A convenient length for this bar isone-half the stroke of the engine. To locate the correctpoint for the pivot, assuming the length of the short barto be one-half the length of the stroke, proceed as…
