Twentieth century hand-book for steam engineers and electricians with questions and answers; a practical non-technical treatise .. (1913)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & company · leaf 522

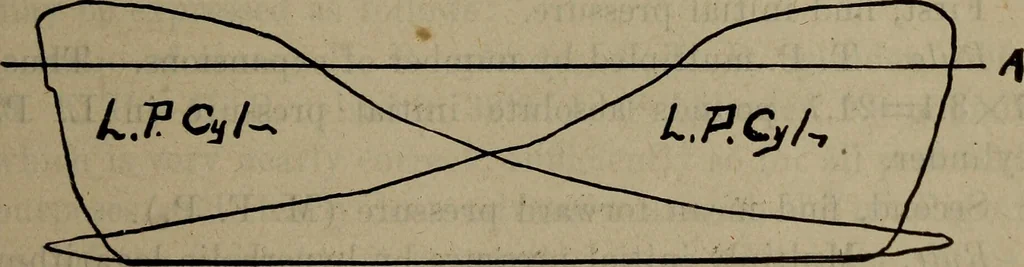

Fig. 196 pheric line^ showing that the exhaust is in no way restrictedor cramped. I. H. P. is 65.7 and steam consumption 21pounds per I. H. P. per hour. … Fig. 197 Figs. 196 and 197 are diagrams taken from a cross com-pound condensing Corliss engine. The high pressure cylin-der was 24x48 inches^ and the low pressure cylinder was44x48 in. The steam from the high pressure exhausted 510 Steam Engineering into a receiver^ and from tbence into the low…
