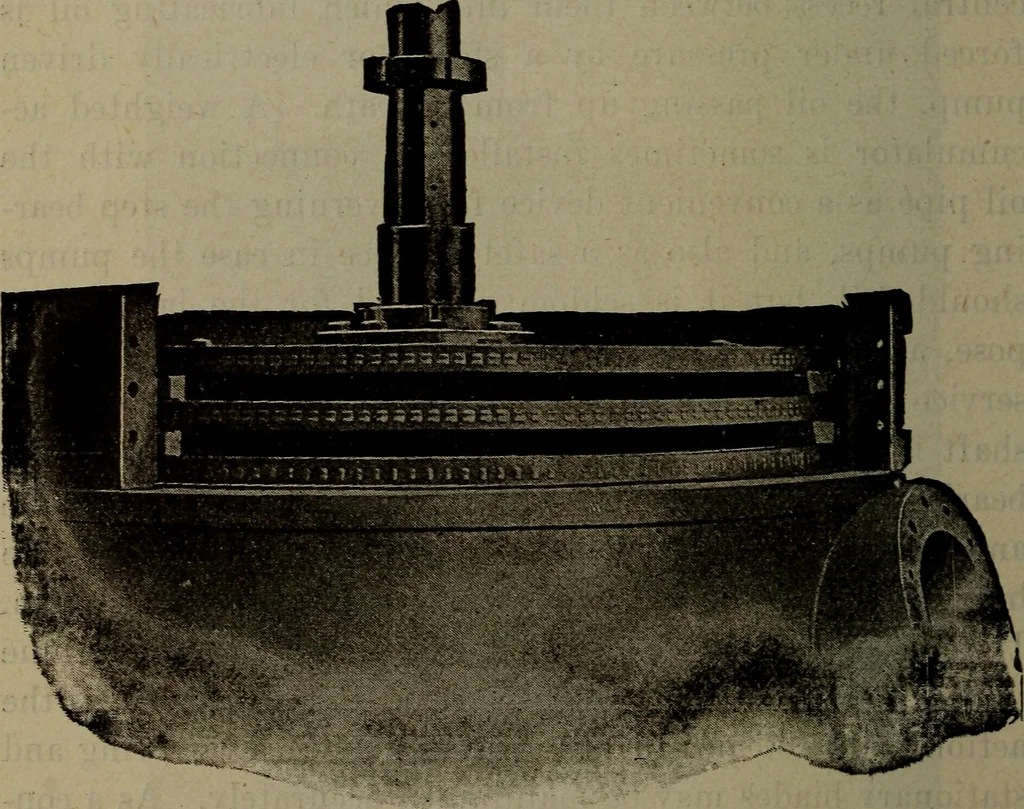

of the cylinder or casing.As in the Westinghouse-Parsons type, the function of thestationary blades is to give direction to the flow of steam. 614 Steam Engineering Fig. 255 illustrates one stage of a 500 K. W. turbine incourse of construction. It will be observed that there arethree wheels^ and… … Fig. 255500 k. w. curtis steam tukbine in course of construction position. The illustration in Fig. 255 shows the lower orlast stage. The clearance between the revolving and sta-tionary blades is from 3^ to iV ii^v thus reducing thewasteage of steam to a very low percentage. The diametersof the…
