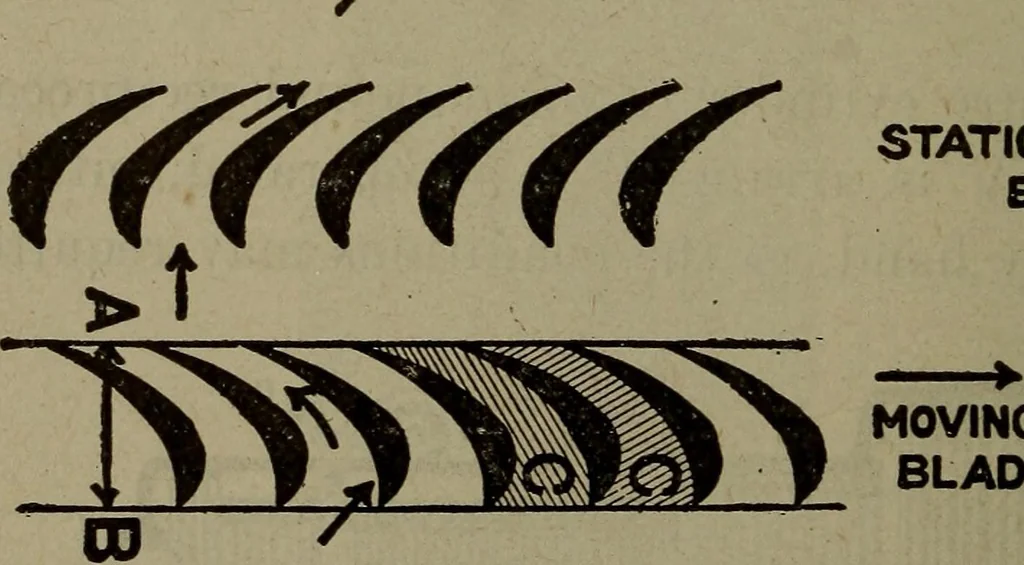

l&CHALIffRS HOOmCATIQNB Fig. 278 tionless glands made tight by water packing are providedat S and T where the shaft passes out of the cylinder. Theshaft is extended at U and connected to the generator shaftby a flexible coupling. 652 Steam Engineering. The action of the steam, and the general… … MOVINGBLADES STATrONARYBLADES MOVINGBLADESf STATIONARYBLADES rrrmr MOVINGBLADES STATIONARYBLADES Fig. 279 Showing Arrangement of Blading and Course of the Steam inParsons Steam Turbine neutralizing the end thrust, are arranged in a differentmanner, the largest one of the three pistons (piston…
