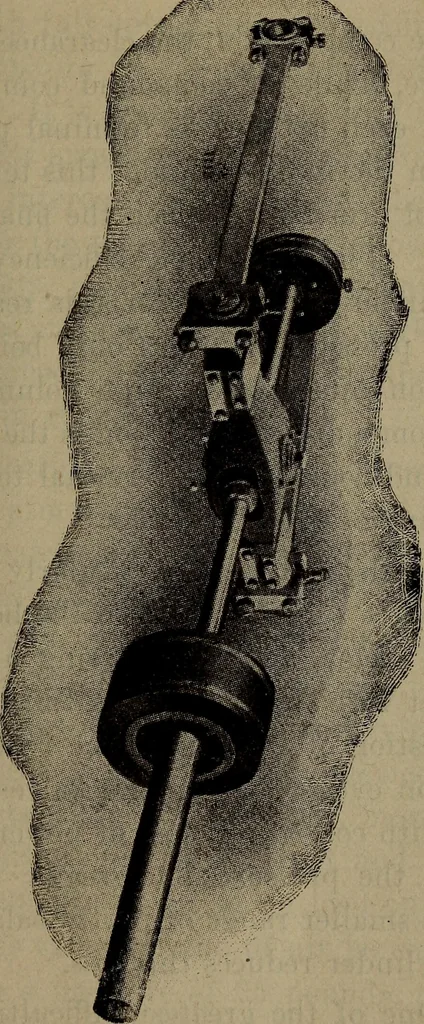

at the other end of the machine; forit makes possible an earlier cut-off in the steam-cylinder anda consequently greater steam expansion with its attendantsaving; late cut-offs not being so necessary to prevent cen-tering^\ Multi-stage compression with effective intercoolershetween stages, also… … Fig. 348 an illustration oe the straight line principle Showing the Arrangement of the Crosshead, Pistons, Piston Rods and Connecting Rods of the Class A Machine on the return stroke to atmospheric pressure before freeair can enter through the inlet valves. The higher the pres- 822 Steam…
