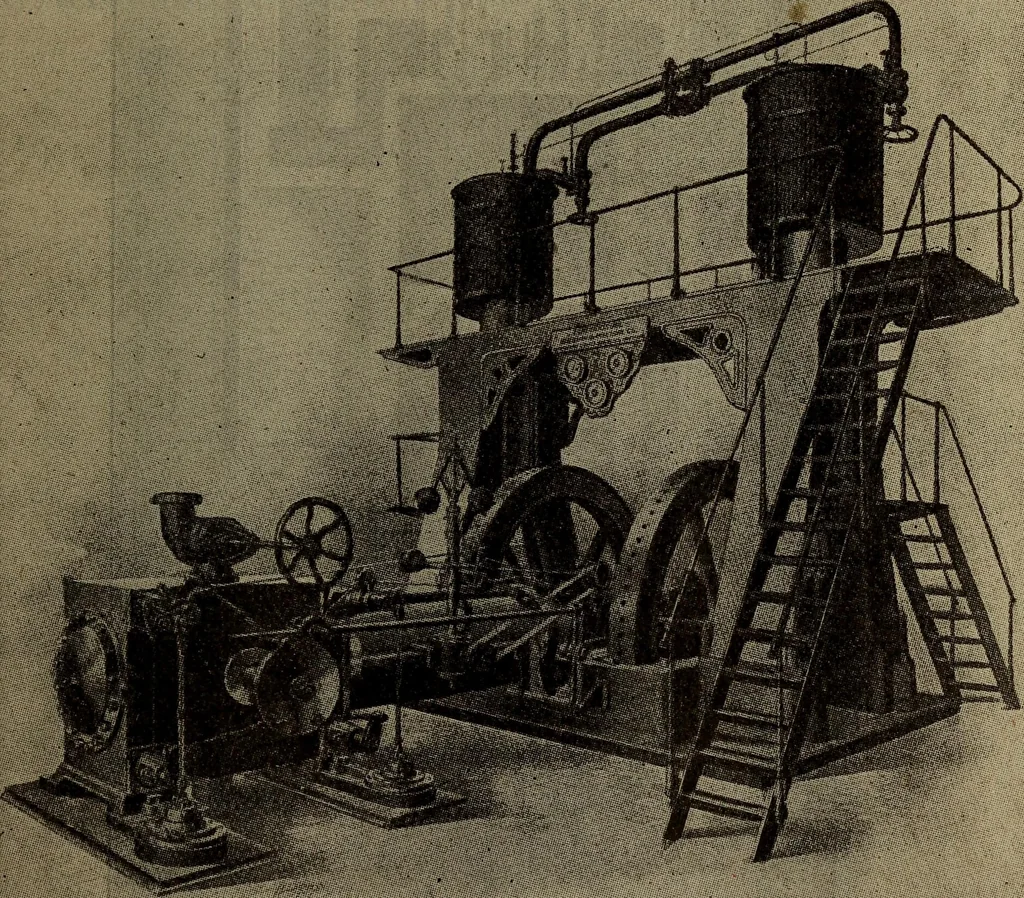

nt in the steam consumption. Heavy pump columns terminate at the bottom in broadflanges bolted to a substantial foundation plate, cast inone piece and provided with four journal bearings forthe crank shaft. Convenient stairways and galleries are J Consolidated Ice Machine 8. 1 proyided to furnish… … FiG. 3G7 . VERTICAL CONSOLIDATED REFRIGERATING MACHINE der below the piston, thus keeping the pump cylinder andpiston cool. An oil chamber, which effectually seals the stuffing-boxaround the pump piston rod, is formed in the lower partof the pump. As the pressure on the stuffing-box end of 882…
